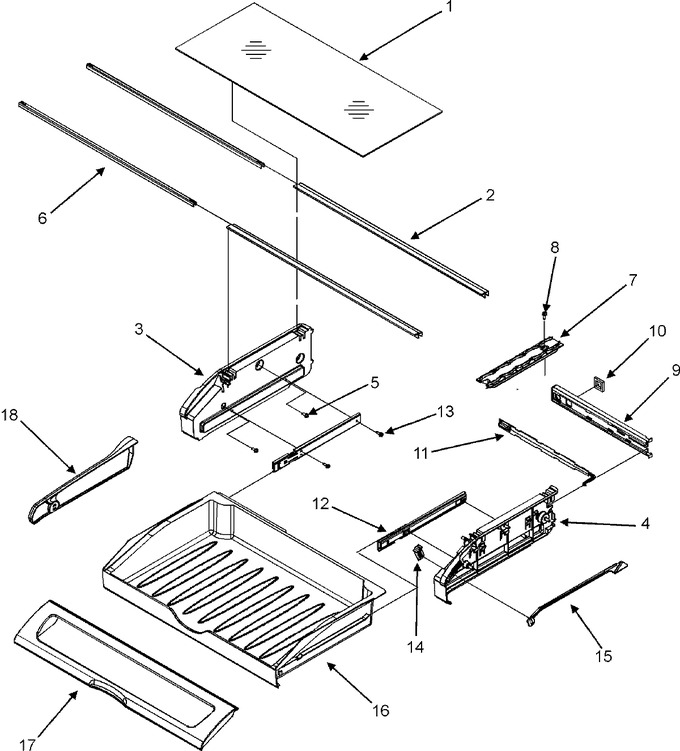

Diagram #	Part Number		Description	Series	Find a Video
1	WP67002761		Glass, Pantry	10
2	WP67006010		Extr, Glass Support   (Replaces:67002331)	10
3	W10874836		End Cap, Pantry (lt)   (Replaces:67002757)	10
4	W10874836		End Cap, Pantry (rt)   (Replaces:67003281)	10
5	M0238636		Screw-sm	10
6	WP12227305WD		Brace, Pantry   (Replaces:67002330)	10
7	WP67001719		Track, Deli Drawer	10
8	M0238642		Screw, Sm	10
9	12656202		Housing, Control   (Replaces:67002328)	10
	M0238642		Screw, Sm	10
10	67002329		Gasket, Pantry	10
11	WP67003793		Slide, Temp Control	10
12	WPW10235370		Glide, Pantry Door   (Replaces:67002752)	10
13	WPW10348409		Screw, Mounting   (Replaces:M0211533)	10
14	W11498983		Knob, Temp Control   (Replaces:67003791)	10
15	WP67003795		Bar, Temp Control	10
16	WP67003531		Drawer, Pantry	10
17	W10827015		Lid, Pantry   (Replaces:67004643)	10
18	WP67002759		Divider, Pantry	10
