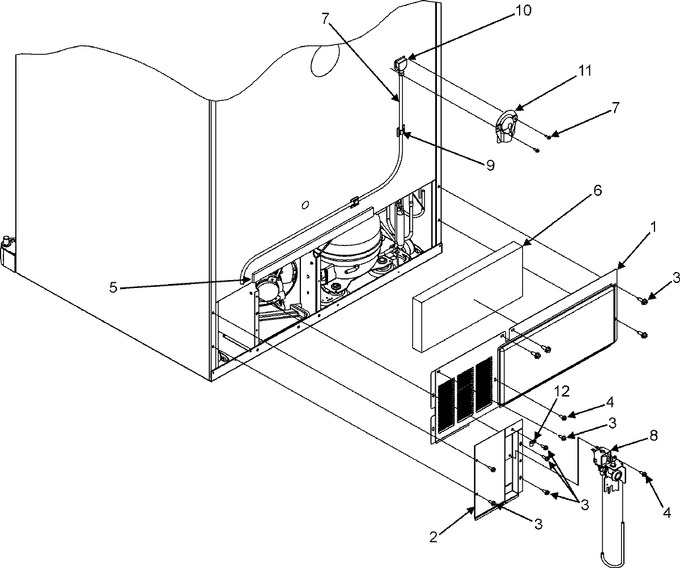

Diagram #	Part Number		Description	Series	Find a Video
1	12575101WD		Back, Mach Comp   (Replaces:12575101ED)	10
	67006101		Cover, Mc Back	12
2	12479803		Cover, Water Valve	10
3	67006425		Screw, Sm   (Replaces:M0238616)	10
4	681390		Screw   (Replaces:M0251015)	10
5	B5759649		Gasket, Mc Back	10
6	67003796		Fiber, Acoustic	10
7	WPB5705307		Tube, Plastic   (Replaces:67003729)	10
	WPA3223101		Insert, Plastic Tube	10
8	WP67003753		Valve, Water	10
9	WPM0104106		Clip	10
10	W11176463		Elbow, Fill Tube   (Replaces:10463201)	10
	WPM0114003		Clip, Speed	10
11	12726003		Cover, Water Line   (Replaces:67003331)	10
12	W10833902		Clamp, Tube   (Replaces:M0108105)	10
13	WP67006506		Cord, Power   (Replaces:12583301)	10
	WP67006506		Cord, Power	12
