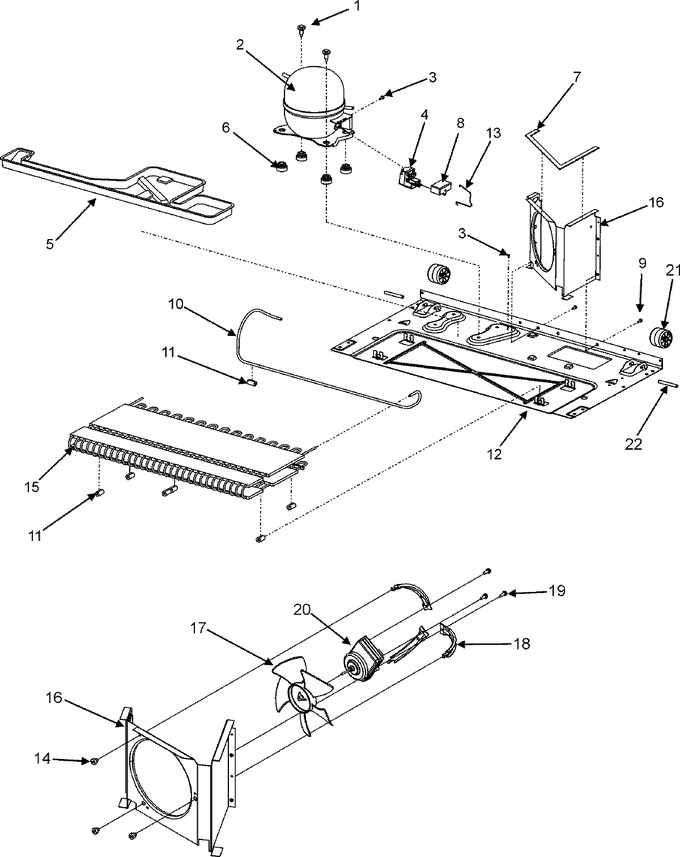

Diagram #	Part Number		Description	Series	Find a Video
1	M0221523		Screw, Shldr	10
2	W10160407		Compressor, Tpg1370yxa(bm)   (Replaces:67003762)	10
3	12992301		Screw, Tf   (Replaces:M0231604)	10
4	W10613606		Overload/relay W/capacitor   (Replaces:67003764)	10
5	WP12579803		Pan, Drain   (Replaces:67004464)	10
6	WPW10169124		Grommet, Compressor   (Replaces:67003493)	10
7	WP854334		Seal   (Replaces:61003210)	10
8	WP65889-4		Capacitor   (Replaces:C8931612)	10
9	67006425		Screw, Sm   (Replaces:M0238616)	10
10	WP12866903		Tube, Discharge   (Replaces:67004700)	10
11	67005680		Grommet, Condenser   (Replaces:12578601)	10
12	67001512		Pan, Base	10
13	12576801		Strap, Bale	10
14	WP61004743		Grommet, Bracket	10
15	WP67006131		Condenser X   (Replaces:67004682)	10
	67002235		Block-eps Cond	10
16	67001090		Shroud, Condenser Fan	10
17	W10156818		Blade, Cond Fan   (Replaces:67004952)	10
18	WP67004953		Bracket, Cond Motor	10
19	WP67004954		Screw	10
20	67004432		Motor, Condenser Fan	10
21	WP67005149		Roller	10
22	67006434		Axle, Roller	10
23	67005251		Harness, Mc	10
