01 - Cabinet Back


02 - Compressor/cond Motor/rear Rollers


03 - Controls


04 - Crisper Assembly


05 - Evaporator Area & Rollers


06 - Freezer Door


07 - Freezer Shelves


08 - Handles (mff2557heb/q/s/w-series 10)


09 - Handles (mff2557heb/w-series 12)


10 - Ice Maker


11 - Interior Cabinet & Toe Grille


12 - Left Refrigerator Door


13 - Pantry Assembly


14 - Ref Dr Storage & Center Hinges


15 - Refrigerator Shelves


16 - Right Refrigerator Door


17 - Supplemental Information


18 - Wiring Information (series 10)


19 - Wiring Information (series 12)

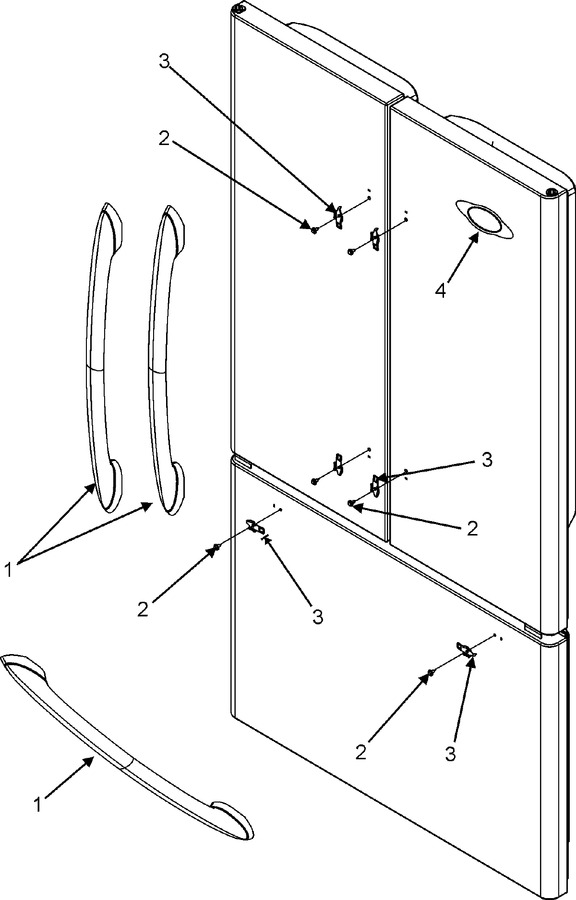

Diagram #	Part Number		Description	Series	Find a Video
1	67005537		Handle Assy., Door (wht)	10
	67004408		Handle Assy., Frz. Door (wht)	10
	67003876		Card, Handle Release	10
2	WP7101P126-60		Screw, Sm No.10   (Replaces:67003800)	10
3	WP67006852		Clip,handle Butterfly   (Replaces:12723002)	10
4	2324038		Nameplate   (Replaces:67003877)	10
