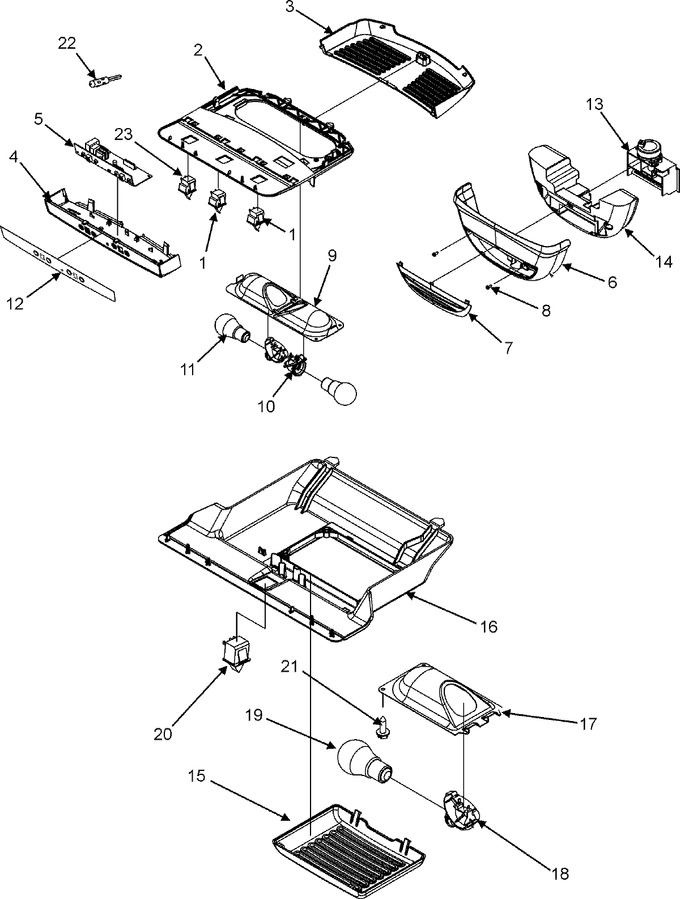

Diagram #	Part Number		Description	Series	Find a Video
1	W11384469		Switch, Light   (Replaces:C3680310)	10
2	67004078		Module, Light	10
3	W11284721		Cover, Ref Light   (Replaces:67003897)	10
4	67004005		Module, Ref Control	10
5	WPW10503278		Board Kit, Control (jazz)   (Replaces:12002509)	10
	WPW10503278		Board, Control   (Replaces:67006214)	12
6	WP12806701		Cover, Damper   (Replaces:67003899)	10
7	67003900		Insert, Damper Cover	10
8	WP400021-1		Screw   (Replaces:M0213132)	10
9	12806601		Housing, Light   (Replaces:67003901)	10
10	W11447232		Socket, Light   (Replaces:Y12570701)	10
11	8009		Bulb, Light   (Replaces:67003883)	10
12	67004642		Overlay, Control Module	10
13	WP67003903		Control, Damper	10
	WPW10196393		Damper, Elec Control   (Replaces:67006116)	12
14	WP13012402		Insulation, Damper Control   (Replaces:67006604)	12
	WP67003904		Insulation, Damper Control	10
15	67003905		Cover, Fz Light	10
16	67003906		Module, Fz Control	10
17	67001035		Housing, Light	10
18	W11447232		Socket, Light   (Replaces:Y12570701)	10
19	8009		Bulb, Light   (Replaces:67003883)	10
20	W11396033		Switch, Light/intrlk   (Replaces:12466101)	10
21	WPW10139210		Screw, Tc   (Replaces:M0226528)	10
22	12002355		Thermistor Kit	10
23	W11478401		Switch, Energy Saver   (Replaces:67003940)	10
24	WP12868601		Harness, Ff Control   (Replaces:67004032)	10
	67003908		Harness, Fz Module	10
