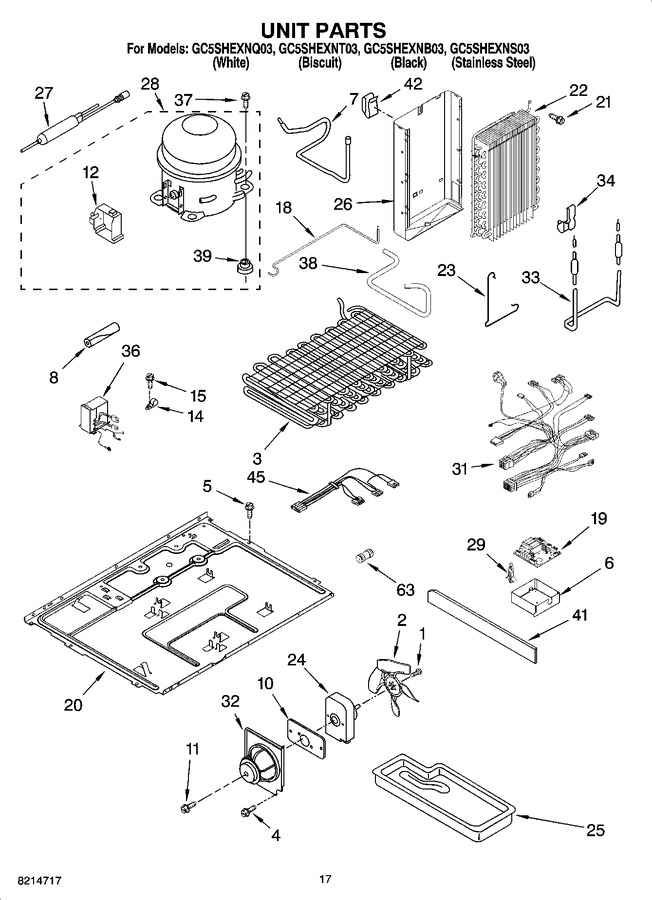

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WP488234 | Screw (Replaces:777070) |  |
|||
| 2 | 8201630 | Fan Blade (Replaces:2225834) | |
|||
| 3 | W10193018 | Condenser Assembly (Replaces:2223315) | |
|||
| 4 | 8281197 | Screw | |
|||
| 5 | 3400524 | Screw (6) | |
|||
| 6 | 2223703 | Housing, Control Board | |
|||
| 7 | W10528579 | Tube Suction (Replaces:2223351) | |
|||
| 8 | 2162499 | Sleeve (Replaces:2161302) | |
|||
| 10 | 2301979 | Plate, Mounting | |
|||
| 11 | WP8281196 | Screw | |
|||
| 12 | 2215676 | Cover, Terminal | |
|||
| 14 | W11456069 | Clamp, Cable (Replaces:2185788) | |
|||
| 15 | WP488649 | Screw | |
|||
| 18 | 2223353 | Tube, Condenser To Heat Loop | |
|||
| 19 | WPW10219463 | Electronic Control (Replaces:2307028) | |
|||
| 20 | 2306932 | Baseplate | |
|||
| 21 | WP489478 | Screw | |
|||
| 22 | WP2188823 | Evaporator | |
|||
| 23 | WP2161324 | Clamp | |
|||
| 24 | W10124096 | Fan, Motor (Replaces:2188729) | |
|||
| 25 | 2223398 | Tray, Evaporator | |
|||
| 26 | 2224022 | Heat Shield | |
|||
| 27 | W10843121 | Drier (Replaces:2199167) | |
|||
| 28 | 8201675 | Compressor (includes Items 12 & 39) (Replaces:2223801) | |
|||
| 29 | 2223800 | Spacer (5) | |
|||
| 31 | 2187849 | Harness, Main Control | |
|||
| 32 | 2224024 | Fan, Motor Bracket | |
|||
| 33 | WP2210737 | Heater, Defrost | |
|||
| 34 | 2304287 | Clip | |
|||
| 36 | W10629033 | Inverter Box (Replaces:2304098) | |
|||
| 37 | 876811 | Screw (Replaces:489473) | |
|||
| 38 | 2223352 | Tube, Discharge | |
|||
| 39 | 4388295 | Grommet (4) (production) (Replaces:2183042) | |
|||
| WP4387558 | Grommet (4) (service) | |
||||
| 41 | 2223394 | Extension, Air Baffle | |
|||
| 42 | 2155547 | Clip, Heat Shield | |
|||
| 45 | 2187737 | Unit Harness | |
|||
| 63 | WP978025 | Valve, Access (1/4``) | |
|||
| 978030 | Valve, Access (3/4``) | |
||||
| 876764 | Valve, Access(3/16``) | |
||||
| WP4373559 | Connector, Water Tube (Replaces:2209709) | |
||||
| N/A | Following Parts Not Illustrated And Optional Parts Not Included | |
||||
| 978026 | Valve, Access (5/16``) | |
||||
| 978027 | Valve, Access (3/8``) | |
||||
| 978028 | Valve, Access (1/2) | |
||||
| 978029 | Valve Access (5/8``) | |
