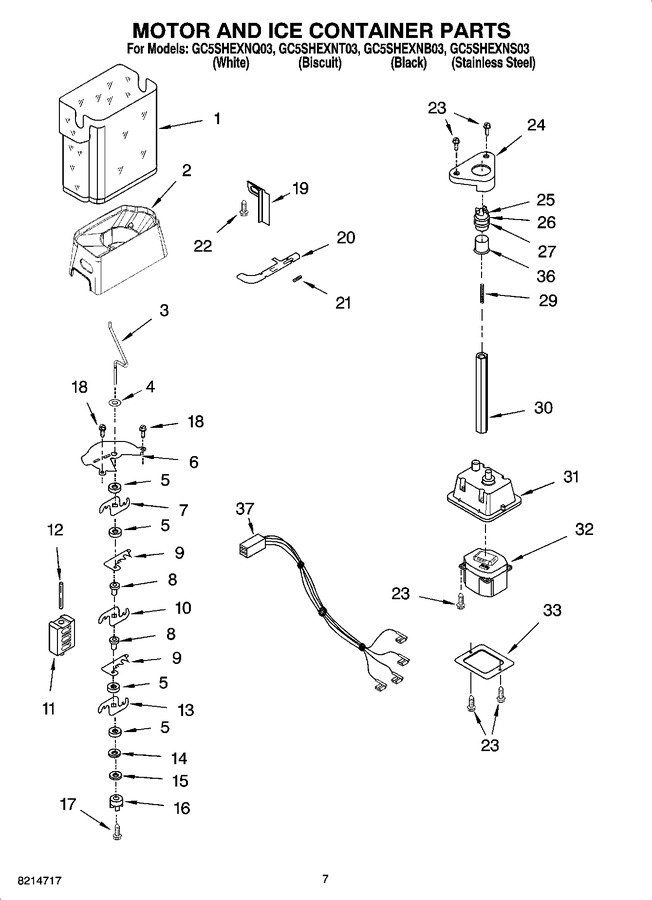

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 2223317 | Ice Bin |  |
|||
| 2 | 2255574 | Crusher Bin | |
|||
| 3 | W10852517 | Auger (Replaces:2258222) | |
|||
| 4 | W10856867 | Washer (Replaces:2258220) | |
|||
| 5 | WP1119007 | Spacer, Flat (6) | |
|||
| 6 | 2255460 | Cover, Crusher | |
|||
| 7 | W10278733 | Blade, Rotary (Replaces:2257024) | |
|||
| 8 | WP1119005 | Spacer, Step (2) | |
|||
| 9 | 2257020 | Blade, Fixed | |
|||
| 10 | W10278732 | Blade, Rotary (Replaces:2257023) | |
|||
| 11 | 2198602 | Block, Blade | |
|||
| 12 | 489229 | Roll Pin | |
|||
| 13 | W10278731 | Blade, Rotary (Replaces:2257022) | |
|||
| 14 | WP489235 | Washer, Plain | |
|||
| 15 | WP2198661 | Washer, Coupling | |
|||
| 16 | WP2220457 | Coupling | |
|||
| 17 | WP8281164 | Screw | |
|||
| 18 | WP3400065 | Screw | |
|||
| 19 | WP2315403 | Button, Bin (Replaces:2255575) | |
|||
| 20 | 2212371 | Latch, Bin | |
|||
| 21 | WP2198608 | Spring, Latch | |
|||
| 22 | 2198671 | Screw | |
|||
| 23 | WP8281163 | Screw | |
|||
| 24 | WP2212369 | Holder | |
|||
| 25 | WP2220458 | Coupling, Bottom | |
|||
| 26 | WP2198628 | Seal | |
|||
| 27 | WP2212370 | Washer | |
|||
| 29 | W10852956 | Spring (Replaces:2198607) | |
|||
| 30 | WP999536 | Drive Shaft | |
|||
| 31 | WP2256154 | Enclosure, Motor | |
|||
| 32 | WP2188860 | Dispenser, Motor | |
|||
| 33 | 2222862 | Cover (Replaces:2212305) | |
|||
| 36 | WP2212365 | Sleeve, Coupling | |
|||
| 37 | W10683539 | Wire Harness, Idi Motor (Replaces:2187725) | |
|||
| 100 | 2258249 | Ice Container (complete) | |
