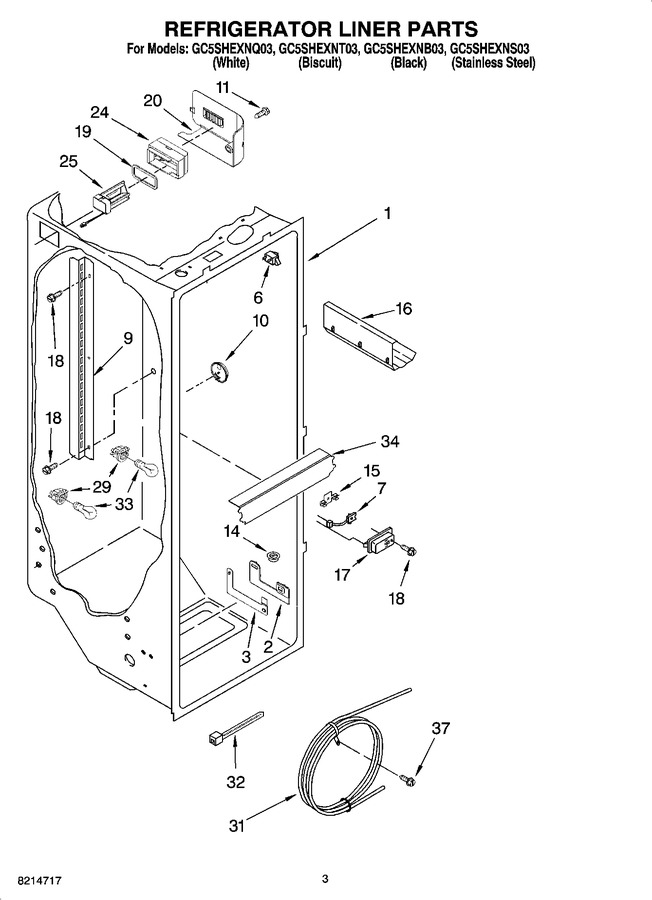

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |  |
|||
| 2 | 2223524 | Escutcheon, Meat Pan Control (Replaces:2223338) | |
|||
| 3 | 2223339 | Slide Meat Pan Control | |
|||
| 6 | W11384469 | Switch, Rocker Arm (Replaces:1118894) | |
|||
| 7 | WP2188820 | Thermistor | |
|||
| 9 | 2223456 | Ladder, Shelf (2) | |
|||
| 10 | 2261601 | Housing, Door Control | |
|||
| 11 | 489084 | Screw | |
|||
| 14 | 2171846 | Release Valve | |
|||
| 15 | 2209204 | Clip, Thermistor | |
|||
| 16 | W10777924 | Rack, Wine & Egg (Replaces:2179404K) | |
|||
| 17 | 1116793 | Cover, Thermistor | |
|||
| 18 | WP489478 | Screw | |
|||
| 19 | 2304597 | Gasket, Air Baffle | |
|||
| 20 | 2223403 | Cover, Air Baffle | |
|||
| 24 | WP2224076 | Air Diffuser Assembly | |
|||
| 25 | WP2220377 | Air Baffle | |
|||
| 29 | 4387478 | Socket (Replaces:2162085) | |
|||
| 31 | WPW10276792 | Reservoir (Replaces:2223876) | |
|||
| 32 | WP2205813 | Strap (Replaces:2307062) | |
|||
| 33 | 8009 | Light Bulb (Replaces:2255743) | |
|||
| 34 | 2223663 | Light Lens | |
|||
| 37 | 798639 | Screw (Replaces:488280) | |
