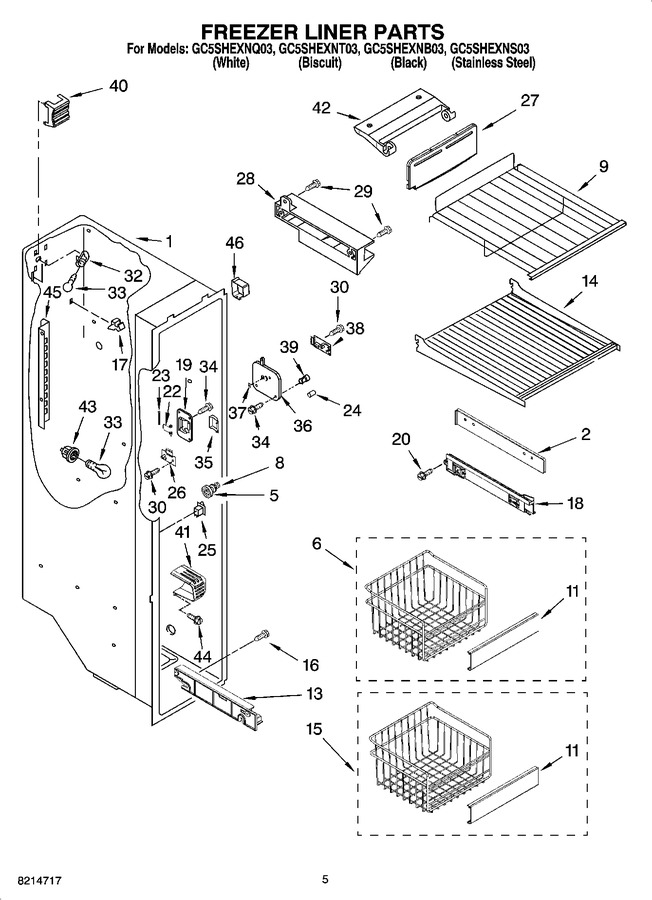

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Seviceable Part) |  |
|||
| 2 | 2223777 | Spacer, Slide (2) | |
|||
| 5 | WP2196483 | Stud Assembly | |
|||
| 6 | 2223690 | Basket, Deep (2) | |
|||
| 8 | WP3400806 | Screw (Replaces:8281158) | |
|||
| 9 | 2223500 | Shelf Assembly, Cantilever (2) | |
|||
| 11 | 2223782 | Front, Basket | |
|||
| 13 | 2223787 | Shelf Track (right Side) | |
|||
| 2223788 | Shelf Track (left Side) | |
||||
| 14 | WP2223681 | Shelf, Fixed | |
|||
| 15 | 2223692 | Basket, Lower | |
|||
| 16 | W10759522 | Screw (Replaces:486298) | |
|||
| 17 | 2215823 | Clip, Air Duct (2) (Replaces:842534) | |
|||
| 18 | 2301544 | Glide Assembly, Basket (2) (right Side) | |
|||
| 2301545 | Glide Assembly, Basket (2) (left Side) | |
||||
| 19 | 2223991 | Cover, Emitter | |
|||
| 20 | W10154233 | Screw (Replaces:8534064) | |
|||
| 22 | WP2198635 | Spring | |
|||
| 23 | WP2198634 | Pin | |
|||
| 24 | 2198665 | Tube, P.c. Board | |
|||
| 25 | W11457217 | Switch, Rocker Arm (Replaces:1115373) | |
|||
| 26 | W11629974 | P.c. Board Emitter (Replaces:2220398) | |
|||
| 27 | WPW10185438 | Cover, Ice Maker (Replaces:2223321) | |
|||
| 28 | 2212321 | Slide, Ice Maker Mounting (right Side) | |
|||
| 2306900 | Slide, Ice Maker Mounting (left Side) | |
||||
| 29 | WP489478 | Screw | |
|||
| 30 | 2006254 | Screw (Replaces:489214) | |
|||
| 32 | 4387478 | Light Socket (Replaces:2162085) | |
|||
| 33 | 8009 | Light Bulb (Replaces:2255743) | |
|||
| 34 | 8281185 | Screw | |
|||
| 35 | WP2198633 | Flipper | |
|||
| 36 | 2255558 | Cover, Receiver | |
|||
| 37 | 2315398 | Slide, Ice Maker Shut Off (Replaces:2255562) | |
|||
| 38 | W11629974 | P.c. Board, Receiver (Replaces:2255114) | |
|||
| 39 | WP2198643 | Lens | |
|||
| 40 | WP2302848 | Light Shield (Replaces:2198589) | |
|||
| 41 | W11298978 | Light Lens (Replaces:2212340) | |
|||
| 42 | WP2198641 | Bracket, Ice Maker Cover | |
|||
| 43 | WPW10119935 | Socket, Light (Replaces:2155597) | |
|||
| 44 | W10142289 | Screw (Replaces:3400893) | |
|||
| 45 | 2223414 | Ladder (left Side) | |
|||
| 2223415 | Ladder (right Side) | |
||||
| 46 | 2306901 | Shield, Wiring | |
