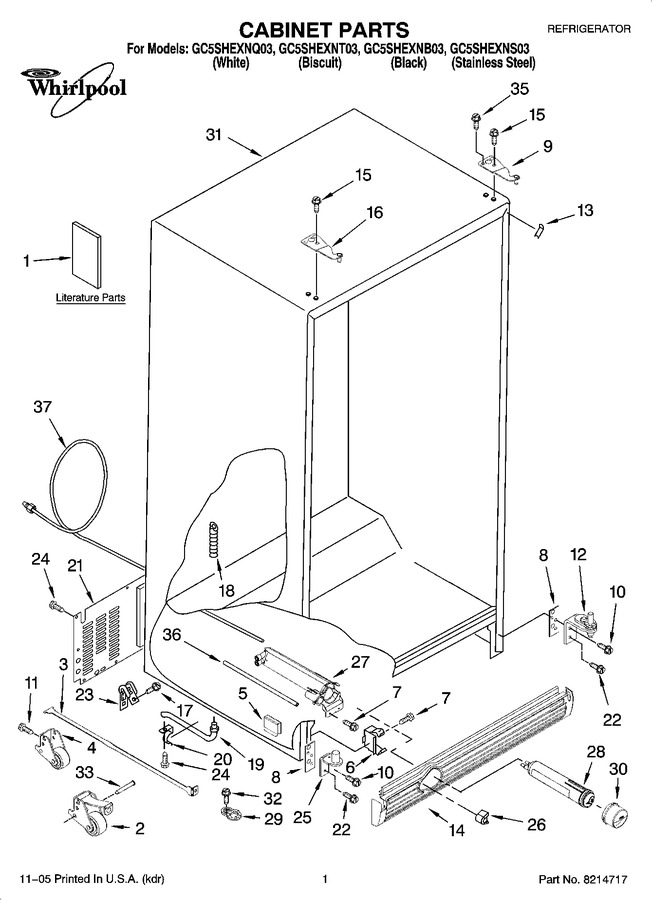

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 2223519 | Energy Guide |  |
|||
| 2223996 | Installation Instructions | |
||||
| 2220407 | Modular Icemaker Service Sheet | |
||||
| 2315216 | Use & Care Guide | |
||||
| 2223419 | Service & Wiring Sheet | |
||||
| 2 | 2306950 | Front Roller Asm (left Side) | |
|||
| WPW10199223 | Front Roller Asm (right Side) (Replaces:2306951) | |
||||
| 3 | 2223263 | Strap, Roller | |
|||
| 4 | WPW10173132 | Roller, Rear (2) (Replaces:2306949) | |
|||
| 5 | W11545866 | Clip, Retainer (4) (Replaces:2223388) | |
|||
| 6 | WP2155013 | Clip, Grille | |
|||
| 7 | WP489478 | Screw | |
|||
| 8 | 2223545 | Shim | |
|||
| 9 | 2307008W | Hinge Top, Rc (white) | |
|||
| 2307008T | Hinge Top, Rc (biscuit) | |
||||
| 2307008B | Hinge Top, Rc (black) | |
||||
| 10 | WP489497 | Screw (Replaces:3400113) | |
|||
| 11 | 3400243 | Screw | |
|||
| 12 | WP2307179 | Hinge Assembly, Bottom-rc (Replaces:2223520) | |
|||
| 13 | 2223893T | Filler, Wrapper (biscuit) | |
|||
| 2223893W | Filler, Wrapper (white) | |
||||
| 2223893B | Filler, Wrapper (black) | |
||||
| 14 | 2223514B | Grille (black) | |
|||
| 2223514W | Grille (white) | |
||||
| W10194058 | Grille (biscuit) (Replaces:2223514T) | |
||||
| 15 | 3400108 | Screw | |
|||
| 16 | 2307007B | Hinge, Top Fc (black) | |
|||
| 2307007T | Hinge, Top Fc (biscuit) | |
||||
| 2307007AP | Hinge, Top Fc (white) (Replaces:2307007W) | |
||||
| 17 | WP489464 | Screw | |
|||
| 18 | W11566763 | Drain Fitting (Replaces:940139) | |
|||
| 19 | 2199954 | Tube, Extension | |
|||
| 20 | WP1108439 | Clip, Drain Tube | |
|||
| 21 | 2223409 | Cover, Unit | |
|||
| 22 | WP489483 | Screw | |
|||
| 23 | 549193 | Clamp-service Cord | |
|||
| 24 | 489084 | Screw | |
|||
| 25 | WP2307152 | Hinge Assembly, Bottom-fc (includes 29 & 32) (Replaces:2223460) | |
|||
| 26 | 2260503T | Button, Water Filter (biscuit) | |
|||
| 2260503W | Button, Water Filter (white) | |
||||
| WP2260503B | Button, Water Filter (black) | |
||||
| 27 | WPW10121140 | Housing, Water Filter (Replaces:2260526) | |
|||
| 28 | EDR3RXD1 | Water Filter (Replaces:4396710) | |
|||
| 29 | WP2223751 | Door Closer, Fc | |
|||
| 30 | 2260518T | Cap, Water Filter (biscuit) | |
|||
| WP2260518B | Cap, Water Filter (black) | |
||||
| WP2260518W | Cap, Water Filter (white) | |
||||
| 31 | N/A | Cabinet (not A Serviceable Part) | |
|||
| 32 | WP489483 | Screw | |
|||
| 33 | 2223387 | Pin, Roller (4) | |
|||
| 35 | W10853301 | Screw (Replaces:3400858) | |
|||
| 36 | W11496481 | Tube, Filter Outlet (Replaces:2224020) | |
|||
| 37 | 8201597 | Tube, Filter Inlet (Replaces:2305536) | |
