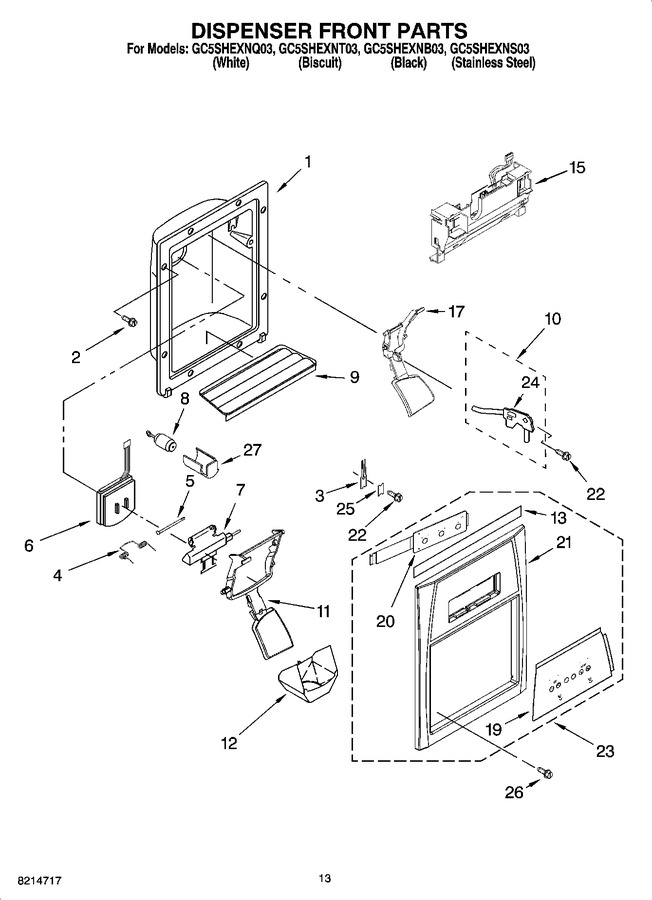

08 - Dispenser Front Parts

Diagram for 09 - Air Flow Parts
09 - Air Flow Parts

Diagram for 10 - Control Parts
10 - Control Parts

Diagram for 11 - Unit Parts
11 - Unit Parts

Diagram for 12 - Icemaker Parts, Optional Parts
12 - Icemaker Parts, Optional Parts


New Model Search:



Manufacturer: Whirlpool

Keyword Search:


< Back to Home

Diagram # Part Number Description Series Find a Video
1 N/A Housing, Dispenser (not Serviced) Find a Video
2 WP3196557 Screw   (Replaces:3196537) Find a Video
3 WP2194719 Retainer, Levers Find a Video
4 WPW10224328 Spring, Torsion   (Replaces:2180209) Find a Video
5 WP2196195 Pin Find a Video
6 WP2180353 Door, Ice Find a Video
7 W10823377 Door Mechanism Assembly   (Replaces:2304355) Find a Video
8 W10823377 Mechanism Delay   (Replaces:2205686) Find a Video
9 WP2206670B Grille, Overflow (black) Find a Video
WP2206670T Grille, Overflow (biscuit) Find a Video
WP2206670W Grille, Overflow (white) Find a Video
10 2221562 Water Fitting Assembly (includes Water Tube) Find a Video
11 WP2255431B Lever, Ice Dispenser (black) Find a Video
2255431T Lever, Ice Dispenser (biscuit) Find a Video
WP2255431W Lever, Ice Dispenser (white) Find a Video
12 WP2180224 Guide, Ice Find a Video
13 2305571 Gasket Find a Video
15 WPW10184875 Bracket, Control   (Replaces:2306938) Find a Video
17 WP2255432B Lever, Water Dispenser (black) Find a Video
WP2255432W Lever, Water Dispenser (white) Find a Video
WP2255432T Lever, Water Dispenser (biscuit) Find a Video
22 WP3400906 Screw   (Replaces:489000) Find a Video
23 2224183T Front Cover Assembly (includes Items 13, 19, 20 & 21) (biscuit) Find a Video
WP2224183B Front Cover Assembly (includes Items 13, 19, 20 & 21) (black) Find a Video
2224183W Front Cover Assembly (includes Items 13, 19, 20 & 21) (white) Find a Video
24 WP2304673 Bracket, Dispenser Find a Video
25 WP2195051 Strain Relief Find a Video
26 WP3400065 Screw Find a Video
27 2252127 Sleeve, Mechanism Find a Video
