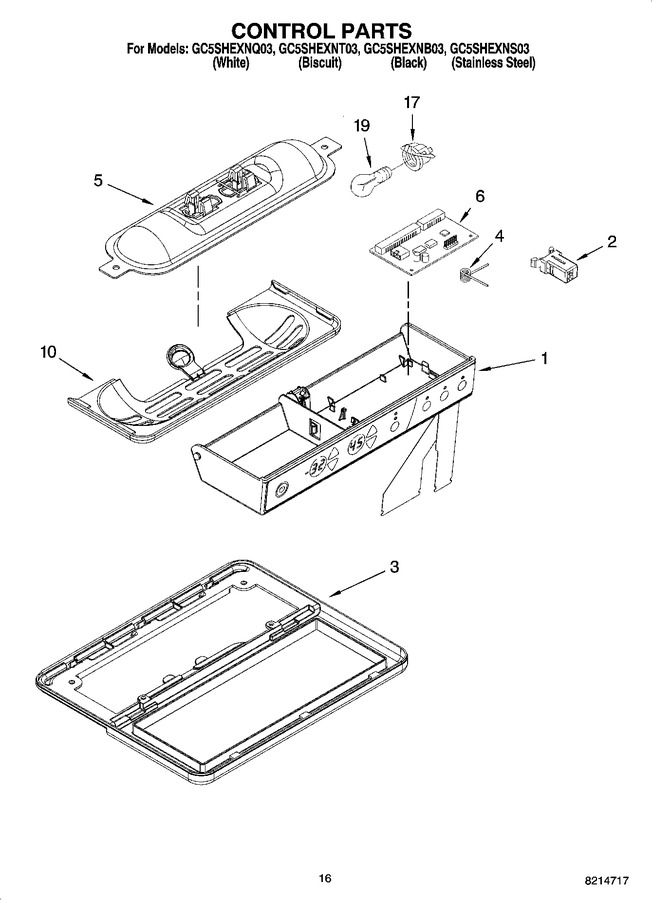

Diagram #	Part Number		Description	Series	Find a Video
1	WP2319752		Control Box (includes 6)   (Replaces:2306990)
2	WP2223877		Latch
3	2306952		Trim, Control Box
4	2223512		Spring, Torsion
5	2223680		Heat Shield Asm   (Replaces:2223882)
6	WP2307037		Control Board Asm
10	WP2223506		Light Lens, Control Box
17	WPW10191429		Light Socket   (Replaces:2223857)
19	8206232A		Light Bulb   (Replaces:2223678)
