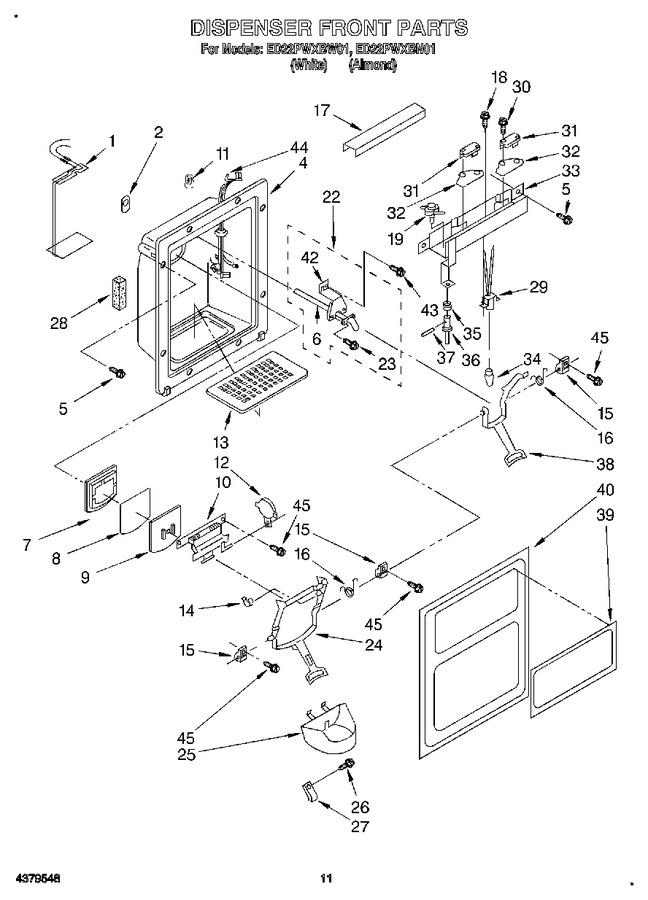

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 2154789 | Heater, Dispenser |  |
|||
| 2 | 987048 | Grommet | |
|||
| 4 | 1107943 | Housing, Dispenser | |
|||
| 5 | W11693756 | Screw (Replaces:488687) | |
|||
| 6 | N/A | Tube, Water (see Item No.22) | |
|||
| 7 | 983691 | Gasket, Door | |
|||
| 8 | 987121 | Shield, Ice Door | |
|||
| 9 | 983690 | Door, Ice | |
|||
| 10 | 938669 | Door Mechanism Assembly | |
|||
| 11 | 227991 | Wire Connector | |
|||
| 12 | WP1120581 | Mechanism Delay | |
|||
| 13 | WP983900 | Grille, Overflow | |
|||
| 14 | 987917 | Clip, Bearing (2) | |
|||
| 15 | 983697 | Bearing, Lever (3) | |
|||
| 16 | 983696 | Spring, Lever (2) | |
|||
| 17 | 984494 | Shield, Wiring | |
|||
| 18 | WP489128 | Screw (Replaces:488500) | |
|||
| 19 | WP8189867 | Switch, Light (Replaces:851386) | |
|||
| 22 | WP4388152 | Water Fitting Assembly (includes Water Tube) (Replaces:2155018) | |
|||
| 23 | WP965173 | Screw (Replaces:487916) | |
|||
| 24 | W10852657 | Lever, Ice Dispenser (Replaces:1127421) | |
|||
| 25 | 985866 | Guide, Ice (Replaces:1118269) | |
|||
| 26 | 489197 | Screw | |
|||
| 27 | 1119056 | Stop, Glass | |
|||
| 28 | 482672 | Seal | |
|||
| 29 | 987265 | Socket, Lamp | |
|||
| 30 | 488362 | Screw | |
|||
| 31 | WP2162361 | Switch | |
|||
| 32 | 984683 | Insulator, Switch (2) | |
|||
| 33 | 1129283 | Bracket, Control | |
|||
| 34 | WP22002263 | Bulb, Light (Replaces:851389) | |
|||
| 35 | 983986 | Spring, Plunger | |
|||
| 36 | 1116563 | Plunger | |
|||
| 37 | 983987 | Pin, Retainer | |
|||
| 38 | 2159196 | Lever, Water Dispenser | |
|||
| 39 | 2150335 | Plaque, Front Cover | |
|||
| 40 | 2150340 | Front Cover, Housing (includes Item 39) | |
|||
| 42 | 987049 | Bracket, Water | |
|||
| 43 | 488316 | Screw | |
|||
| 44 | 2149783 | Wiring Assembly, Door | |
|||
| 45 | WP3400906 | Screw (Replaces:489000) | |
