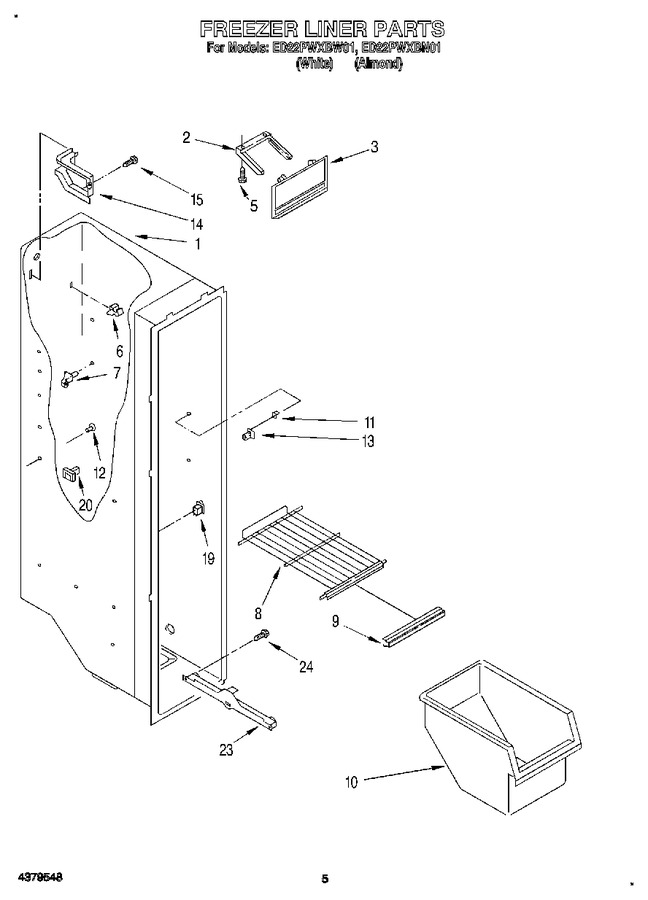

View Diagram in Separate Window
Print Part List
Move Mouse over Availability column to View Location Quantities-on-Hand
Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | N/A | Liner (not A Serviceable Part) | ||||
2 | 1115380 | Slide, Ice Door | ||||
3 | 2170788 | Door, Ice Compartment | ||||
5 | WP489478 | Screw (Replaces:489242) | ||||
6 | 2215823 | Clip, Air Duct (2) (Replaces:842534) | ||||
7 | 4388405 | Support, Stud (2) L.s. Rear (Replaces:1115317) | ||||
8 | 1114609 | Shelf (long) | ||||
1118165 | Shelf (short) | |||||
9 | 2162938 | Trim, Shelf | ||||
10 | 2148194 | Bin, Freezer | ||||
11 | W11581579 | Support Stud (8) (Replaces:946355) | ||||
12 | 1110779 | Grommet (8) | ||||
13 | W11581579 | Stud-front (3) R.s. (Replaces:946356) | ||||
14 | 2155572 | Cover, Wiring | ||||
15 | 489176 | Screw | ||||
19 | W11457217 | Switch, Rocker Arm (Replaces:1115373) | ||||
20 | W11581579 | Stud-rear (3) R.s. (Replaces:1106982) | ||||
23 | 1115383 | Slide, Freezer Bin (left Side) | ||||
1119293 | Slide, Freezer Bin (right Side) | |||||
24 | 718257 | Screw (Replaces:489100) |
