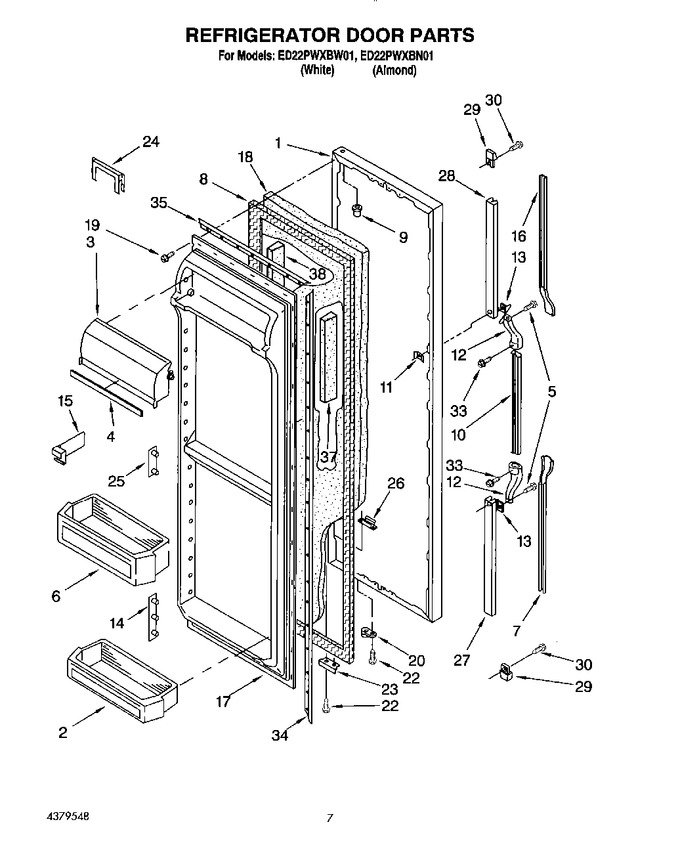

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 4362041 | Refrigerator Door (almond (also Order Item 18)) | ||||
4362040 | Refrigerator Door (white) | |||||
2 | 2170613 | Shelf Bin (2) | ||||
3 | 2170966 | Door, Compartment | ||||
4 | 2162896 | Trim, Compartment Door | ||||
5 | 489084 | Screw | ||||
6 | WP1124846 | Shelf Bin (2) (Replaces:2170614) | ||||
7 | 1119363 | Insert, Handle (almond) | ||||
1119361 | Insert, Handle (white) | |||||
8 | 2188404A | Door Gasket, Magnetic (Replaces:1129266) | ||||
9 | 509929 | Cap, Hinge Sleeve | ||||
10 | 1118417 | Handle, Center | ||||
11 | 941242 | Screw Anchor (2) | ||||
12 | 1119359 | End Cap, Center Handle | ||||
13 | 935075 | Shim | ||||
14 | 1116986 | Pin Plate | ||||
15 | 2152335 | Divider, Bin | ||||
16 | 1119369 | Insert, Handle (almond) | ||||
1119367 | Insert, Handle (white) | |||||
17 | 1129278 | Panel, Interior Door | ||||
18 | 876029 | Foam Insulation (required When Replacing Exterior Door Panel) | ||||
19 | WP489069 | Screw (Replaces:489101) | ||||
20 | 4318165 | Door Closer, Upper Cam (Replaces:2155312) | ||||
22 | WP999367 | Screw (Replaces:489367) | ||||
23 | WP2195950 | Bracket, Door Stop (Replaces:2155334) | ||||
24 | 2163566 | Retainer, Bottle | ||||
25 | 2196166 | Pin Plate (Replaces:1118048) | ||||
26 | 2196135 | Tap, Plate (Replaces:2155335) | ||||
27 | 1119360 | Retainer, Insert (bottom) | ||||
28 | 1119366 | Retainer, Insert | ||||
29 | 2156220 | End Cap (2) | ||||
30 | 489075 | Screw | ||||
33 | 4387279 | Screw (Replaces:489022) | ||||
34 | WP1117766 | Gasket Retainer, Side (2) | ||||
35 | 1118301 | Gasket Retainer, Top & Bottom | ||||
37 | 1115379 | Reinforcement, Shelf | ||||
38 | 4210445 | Woodgrain Handle Insert | ||||
1119055 | Reinforcement, Shelf | |||||
4318948 | Trimless Black Decor Panel | |||||
4319080 | Black Handle Insert |
