| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 1118413 | Shelf, Cantilever (3) |  |
|||
| 2 | 2148237 | Glass, Shelf | |
|||
| 3 | WP1126289 | Cover, Crisper (Replaces:2170656) | |
|||
| 4 | 2170621 | Reflector, Shelf | |
|||
| 5 | 2170597 | Trim, Shelf | |
|||
| 6 | 2170835 | Trim, Crisper Cover | |
|||
| 7 | WP1114687 | Glass, Crisper Cover | |
|||
| 8 | WP2148298 | Cover, Meat Pan (Replaces:2170965) | |
|||
| 10 | WP2148279 | Pan, Crisper (Replaces:2170962) | |
|||
| 11 | 2170961 | Meat Pan | |
|||
| 12 | W10136387A | Egg Bin (Replaces:2170968) | |
|||
| 13 | 2170969 | Cover | |
|||
| 15 | 2148122 | Pan Shelf & Slide | |
|||
| 16 | 2148300 | Glass | |
|||
| 17 | 2170594 | Trim, Front | |
|||
| 18 | 2170964 | Snack Bin | |
|||
| 19 | 4388538 | Shelf Stud (Replaces:2147997) | |
|||
| 20 | 4388538 | Shelf Stud (Replaces:1110718) | |
|||
| 21 | WP2149540 | Shelf Stud | |

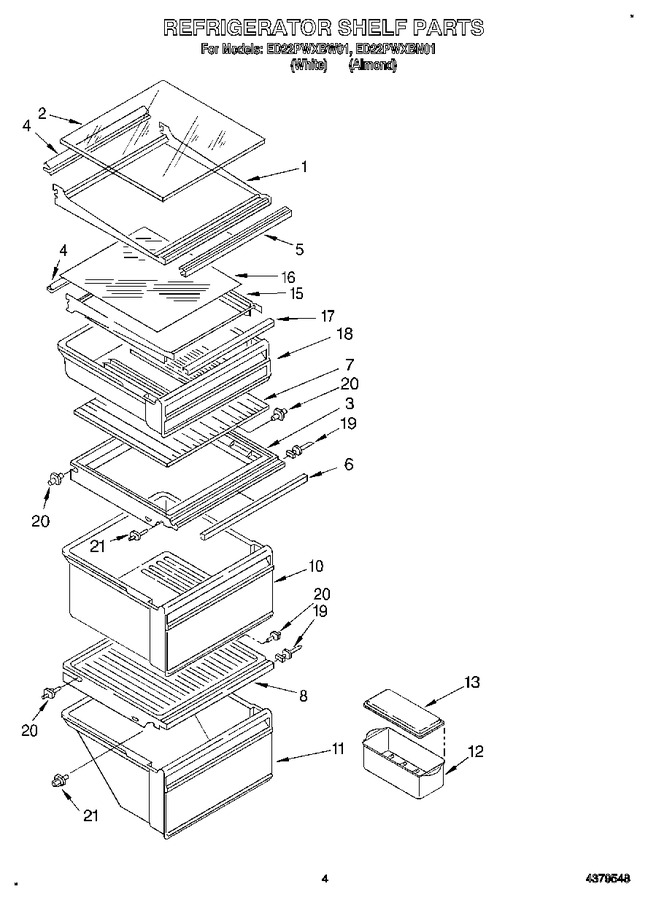

View Diagram in Separate Window
