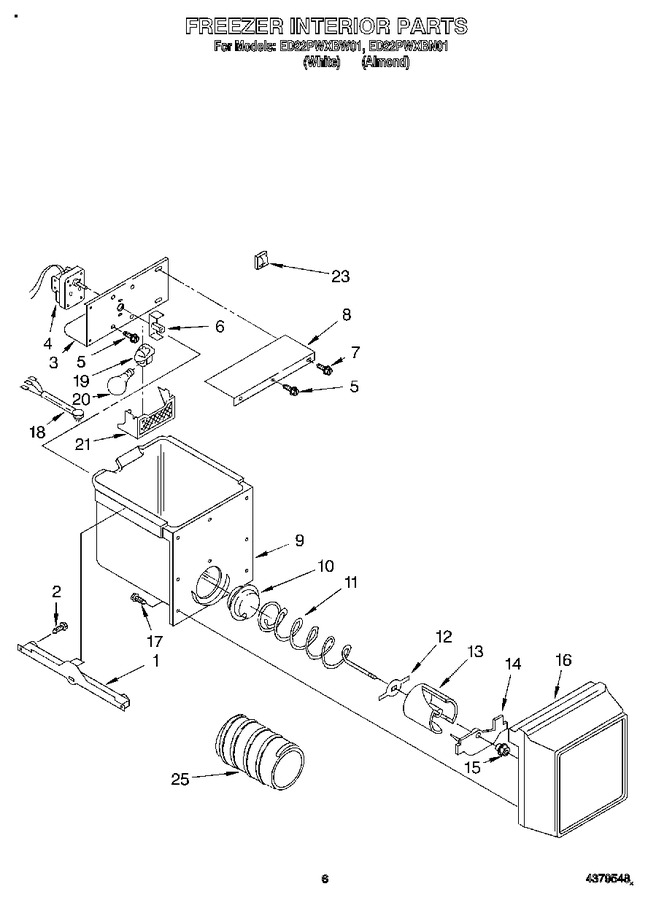

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 1119293 | Slide, Container (right Side) |  |
|||
| W10845585 | Slide, Container (left Side) (Replaces:1119237) | |
||||
| 2 | 718257 | Screw (Replaces:489100) | |
|||
| 3 | WPW10284487 | Bracket, Ice Dispenser (Replaces:1115208) | |
|||
| 4 | WP2188241 | Motor (Replaces:2155262) | |
|||
| 5 | WP489399 | Screw | |
|||
| 6 | WPW10169511 | Coupling, Motor (Replaces:983663) | |
|||
| 7 | WP489478 | Screw (Replaces:489242) | |
|||
| 8 | WPW10284487 | Cover, Motor (Replaces:1115210) | |
|||
| 9 | WP2196089 | Ice Container (Replaces:2152703) | |
|||
| 10 | W10749708 | Coupling (Replaces:983668) | |
|||
| 11 | 1115214 | Conveyor | |
|||
| 12 | 4388736 | Drive Bar (Replaces:946192) | |
|||
| 13 | 4388736 | Drum (Replaces:946193) | |
|||
| 14 | WP2181722 | Baffle (Replaces:1115362) | |
|||
| 15 | 946195 | Nut, Bearing | |
|||
| 16 | 2171259 | Front Cover Ice Container | |
|||
| 17 | WP488787 | Screw (Replaces:488886) | |
|||
| 18 | 2149193 | Wiring Assembly, Ice Dispenser | |
|||
| 19 | 4387478 | Socket, Light (Replaces:2162085) | |
|||
| 20 | 8009 | Light Bulb (Replaces:527949) | |
|||
| 21 | 983359 | Lens, Dispenser Light | |
|||
| 23 | WP1115374 | Clip, Wiring | |
|||
| 25 | 4317870 | Sleeve-auger (Replaces:2152021) | |
