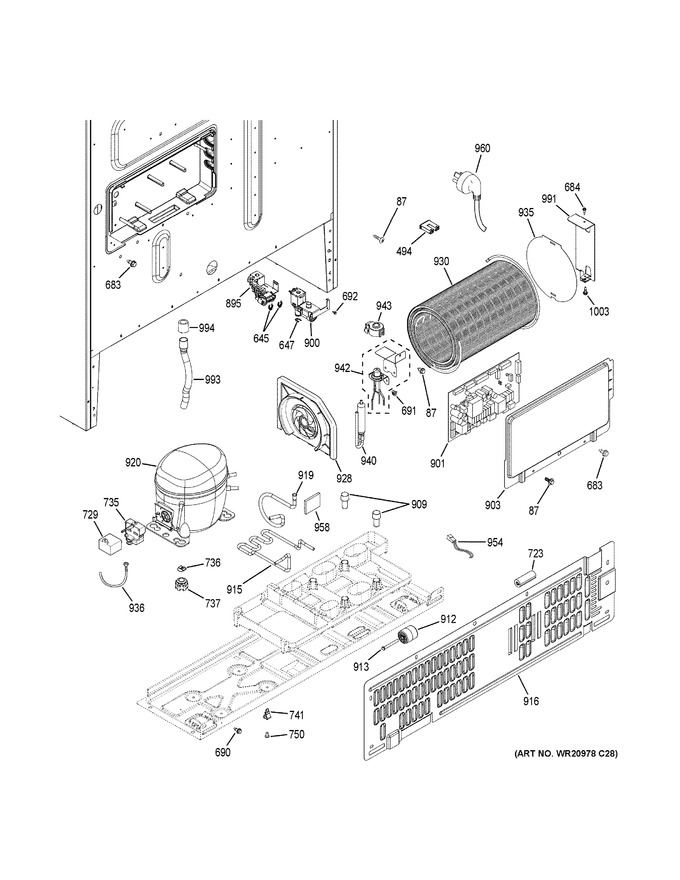

Diagram #	Part Number		Description	Series	Find a Video
87	WR01X10588		Scr 8-18 Ab Ihxw 9/16 S
494	WD1X1459		Insulator Hsng Term
645	WR01X11020		Clip Connector 1/4
647	WR01X11041		Quick Clip Connector 1/4
683	WR01X10602		Scr 8-32 Ab Ihws 3/8 S
684	WR01X10635		Scr 8-32 Ca Ihxw .625 S
690	WZ05X0158		Screw 8-32x3/8 Grd Scr
691	WR01X10897		Scr 12-24tt Bht20 .700 S
692	WZ04X0416		Scr 8-18 Ab Hxw 3/4
723	WR14X10055		Grommet Tubing Slit
729	WR55X23731		Capacitor 12 Uf
735	WR08X10111		Combo Device Tsd-2
736	WR01X23749		Scr 10-32 Ab Hxw 1/2 S
737	WR02X13719		Grommet Compressor
741	WR01X20885		Stud Mtg Compressor
750	WR1X1786		Scr 10-32 Tr 1/2
895	WR55X11146		Valve Im Water Asm
900	WR55X11128		Valve Water Iso Asm
901	WR55X26307		Board Asm Main Reflashed
903	WR02X25126		Cover Mainboard
909	WR02X13668		Support Condenser
912	WR02X13685		Wheel
913	WR01X11008		Axle Wheel
915	WR84X23630		Jumper Comp Discharge
916	WR82X26577		Cover Access
919	WR87X23634		Tube Suction Jumper
920	WR87X23629		Compressor Asm Embraco
928	WR60X23363		Fan Gasket Asm
930	WR84X10115		Condenser Asm Formed
935	WR17X13045		Baffle Cond Air
936	WR23X10748		Harness Ground
940	WR86X10089		Dryer Filter
942	WR86X10094		Valve Body Asm
943	WR86X10091		Coil 3 Way Valve
954	WR55X26283		Harness Single Speed
958	WR02X13724		Mastic Sound Deadening
960	WR23X24389		Harness Power Cord
991	WR02X13622		Bracket Condenser
993	WR02X13710		Tube Trap Drain
994	WR01X11006		Check Valve
1003	WR01X10618		Scr 8-18 Tpt 1/4
