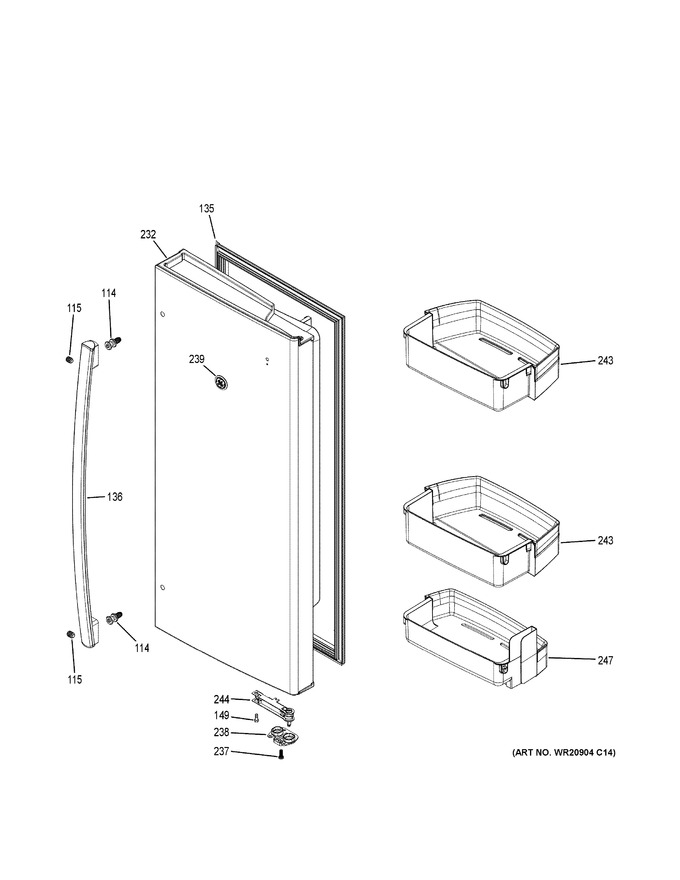

Diagram #	Part Number		Description	Series	Find a Video
114	WR01X11007		Fastener Door Handle
115	WR01X11014		Set Screw
135	WR14X10377		Gasket Ff Dgy
136	WR12X23647		Arc Handle Asm Ff
149	WR01X10196		Screw 8-18 Hi/lo 5/8
232	WR78X26295		Door Foam Ff Rh Asm Es
237	WR01X11032		Scr 10-24 Ab Rnt 20 5/8
238	WR02X13634		Stop Door Rh/lh Asm
239	WR04X10181		Badge Ge Asm
243	WR71X11052		Bin Gal Rh Ff Asm
244	WR11X23035		Closure Door Asm Rh
247	WR71X11050		Bin Cond Rh Ff Asm
