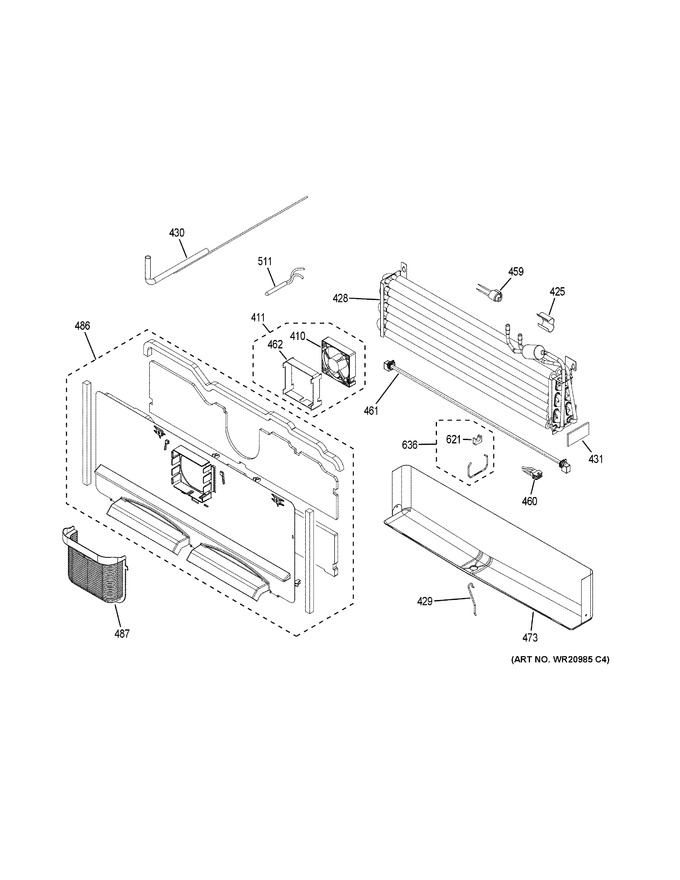

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 410 | WR60X10340 | Fan Motor Dc Fz Evap |  |
|||
| 411 | WR60X10352 | Fz Fan And Felt Asm | |
|||
| 425 | WR02X10879 | Clip Evap Thermistor | |
|||
| 428 | WR85X10158 | Evap And Tube Asm Fz | |
|||
| 429 | WR51X10134 | Heater Conduction Fz | |
|||
| 430 | WR84X10113 | Tube Fz Repair Asm | |
|||
| 431 | WR02X13725 | Block Evap Seal | |
|||
| 459 | WR50X10108 | Thermostat Defrost Fz | |
|||
| 460 | WR23X10745 | Heater Harness Fz W/tco | |
|||
| 461 | WR51X10131 | Heater Def Asm Fz | |
|||
| 462 | WR02X13734 | Tape Felt | |
|||
| 473 | WR17X13080 | Trough Drain Fz | |
|||
| 486 | WR14X20011 | Evap Cover Asm Fz | |
|||
| 487 | WR17X13090 | Cover Fan Fz | |
|||
| 511 | WR55X11121 | Sensor Temperature | |
|||
| 621 | WR02X10518 | Holder Element | |
|||
| 636 | WR02X13678 | Holder Element Asm | |
