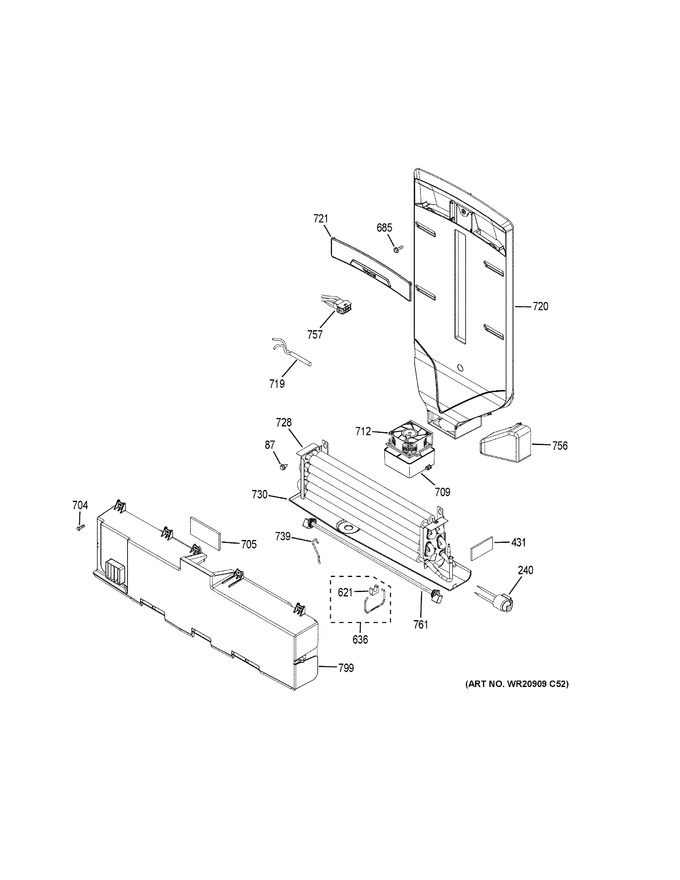

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 87 | WR01X10588 | Scr 8-18 Ab Ihxw 9/16 S |  |
|||
| 240 | WR50X10109 | Thermostat Defrost Ff | |
|||
| 431 | WR02X13725 | Block Evap Seal | |
|||
| 621 | WR02X10518 | Holder Element | |
|||
| 636 | WR02X13678 | Holder Element Asm | |
|||
| 685 | WR1X1804 | Scr 8-18 Ab Hxw 3/4 Wh | |
|||
| 704 | WR01X11061 | Scr 8-18 Hi/lo Hwx 3/4 | |
|||
| 705 | WR02X13731 | Gasket Ff Fan Front | |
|||
| 709 | WR24X10292 | Boot Fan Ff Motor | |
|||
| 712 | WR60X26030 | Fan Motor Dc Ff Evap | |
|||
| 719 | WR55X11152 | Sensor Temperature | |
|||
| 720 | WR17X22149 | Duct Tower Asm Ff | |
|||
| 721 | WR17X13243 | Diverter & Badge Asm | |
|||
| 728 | WR85X10154 | Evap & Tube Asm Ff | |
|||
| 730 | WR17X13091 | Trough Drain Ff | |
|||
| 739 | WR51X10133 | Heater Conduction Ff | |
|||
| 756 | WR17X13048 | Cover Connector Ff Fan | |
|||
| 757 | WR23X23626 | Heater Harness Ff | |
|||
| 761 | WR51X10132 | Heater Def Asm Ff | |
|||
| 799 | WR17X24080 | Evaporator Cover Ff | |
