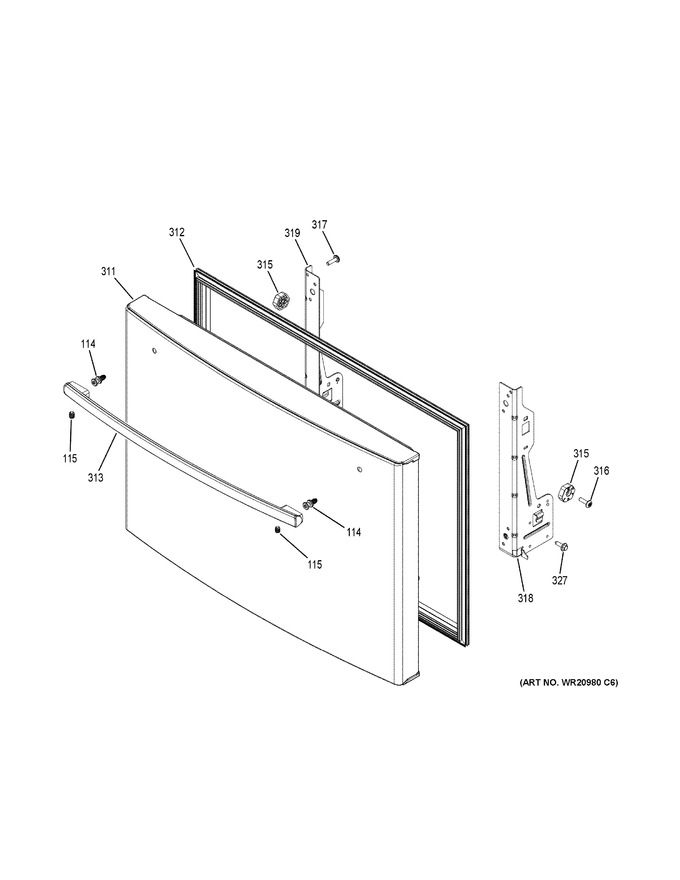

Diagram #	Part Number		Description	Series	Find a Video
114	WR01X11007		Fastener Door Handle
115	WR01X11014		Set Screw
311	WR78X22406		Door Foam Asm Fz Bowed Slt
312	WR14X10376		Gasket Fz Dgy Es
313	WR12X23646		Arc Handle Asm Fz
315	WR02X13627		Cam Vert Adjustment
316	WR01X11010		Scr 1/4-20 Gx Trt 7/8 S
317	WR01X11049		Scr 1/4-20 Hxw 7/8 S
318	WR02X25185		Bracket Door Fz Rh
319	WR02X25184		Bracket Door Fz Lh
327	WR01X11011		Scr1/4-20 Hxw 3/4s
