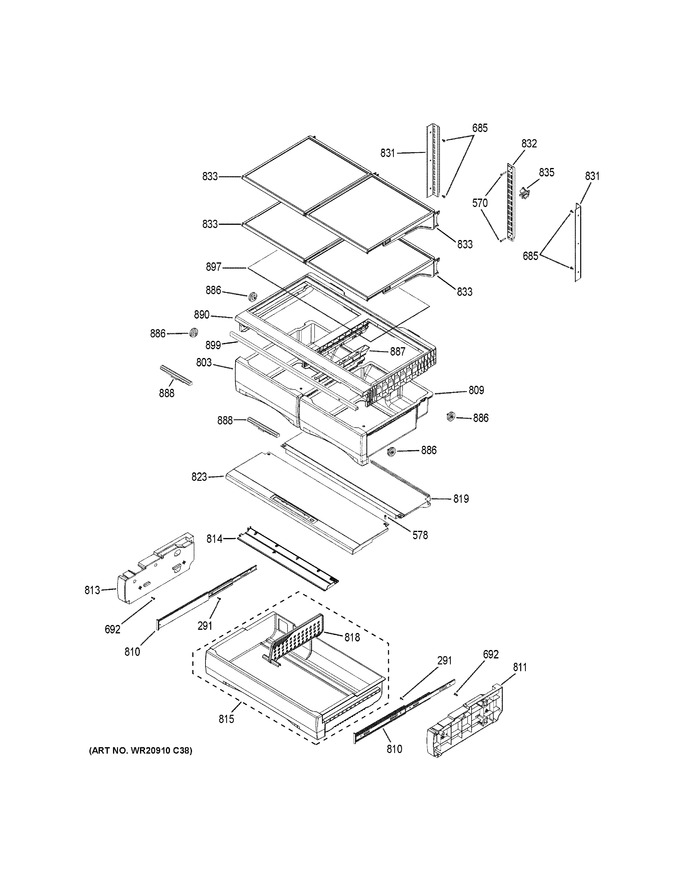

Diagram #	Part Number		Description	Series	Find a Video
291	WR01X10649		Scr 8-10 Pl Pnp 1/2 S
570	WR1X1757		Scr 8-18 Hxw 1 1/4s
578	WR01X11012		Scr 8-18 Ab Hxw 9/16 S
685	WR1X1804		Scr 8-18 Ab Hxw 3/4 Wh
692	WZ04X0416		Scr 8-18 Ab Hxw 3/4
803	WR32X10895		Pan Veg Lh Asm
809	WR32X10894		Pan Veg Rh Asm
810	WR72X10440		Slide Asm Mp Lh
811	WR72X10432		Support Side Rh
813	WR72X10434		Support Side Lh
814	WR32X23048		Diffuser Meat Pan
815	WR32X10868		Pan Meat Asm
818	WR17X13074		Divider Meat Pan
819	WR72X23040		Cover Mp Top Back
823	WR32X23502		Cover Mp Front Asm
831	WR72X21071		Track Side Ff
832	WR72X10429		Track Center Ff
833	WR32X10878		Shelf Asm
835	WR02X13679		Spacer Track
886	WR02X13658		Roller Asm
887	WR72X10431		Guide Roller Veg Pan
888	WR17X24925		Damper Veg Pan
890	WR32X10864		Veg Top Frame Asm
897	WR32X10865		Glass Veg Pan
899	WR02X21803		Bar Reinforcement
