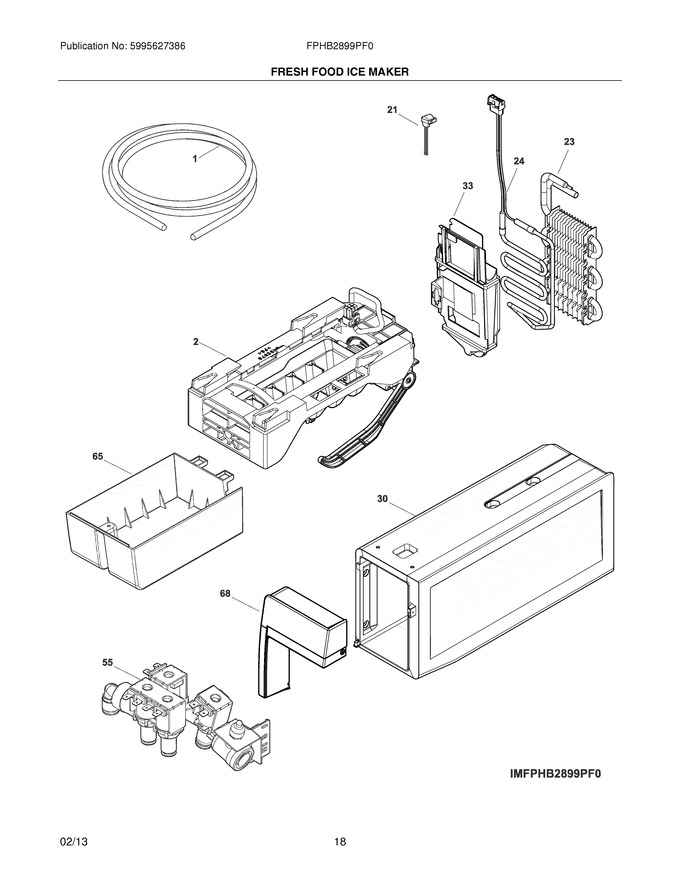

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 218976436 | Tube-water,5/16 - 42`` ,yellow ,sd (Replaces:218976434) |  |
|||
| F2 | 243297613 | Ice Maker,complete ,115 V (Replaces:243297603) | |
|||
| F21 | 5303918568 | Thermostat-defrost,defrost ,icemaker Evap | |
|||
| F23 | 242094603 | Evaporator,ice Maker | |
|||
| F24 | 242094802 | Heater-defrost | |
|||
| 30 | 242093501 | Cover,icmkr & Bucket (Replaces:242142201) | |
|||
| 33 | 5303918747 | Housing-evaporator (Replaces:242094401) | |
|||
| F55 | 242253002 | Valve-water,quad Solenoid | |
|||
| 65 | 242232701 | Cover,wiring | |
|||
| 68 | 242095002 | Cover,-front ,bucket Trim | |
|||
| NI | 241695906 | Screw,10-16ab X 0.50 | |
|||
| 5303918784 | Gasket-evap Housing,.250x1.00x6.600 (Replaces:242095408) | |
||||
| 216737600 | Tape,aluminum ,2`` Wd X 3.50`` L (Replaces:215688131) | |
||||
| 242095409 | Gasket-evap Housing | |
||||
| 218709101 | Screw,hex Head ,10-32 X 0.500 | |
||||
| 240363602 | Screw-shoulder | |
||||
| 241953902 | Screw,no.8 - 18 X .380 ,3 | |
||||
| 242096001 | Insulation,i/container Frt | |
||||
| 240396801 | Clamp,tube/wiring ,nylon ,black/natural | |
||||
| 242039701 | Screw | |
||||
| 241844403 | Tube-water,ice Mold Fill ,black ,extension | |
||||
| 241920106 | Tube-water,assembly ,5/16 - 54`` ,green ,ice Maker Fill,w/extension (Replaces:241920104) | |
||||
| 241964707 | Tube-water,1/4 - 36`` ,green | |
||||
| 241965906 | Tube-water,5/16 - 67`` ,natural | |
||||
| 242220204 | Tube-water,5/16 - 93.5`` ,brown (Replaces:242082105) | |
||||
| 242082106 | Tube-water,5/16 - 69.5`` ,natural | |
||||
| 5303918602 | Tube-water,ice Mold Fill ,1/4 - 44`` ,blue,w/extension (Replaces:242169404) | |
||||
| 241503901 | Connector-water,straight ,5/16 To 1/4 | |
||||
| 241806601 | Connector-water,straight ,5/16 To 5/16 (Replaces:242103001) | |
