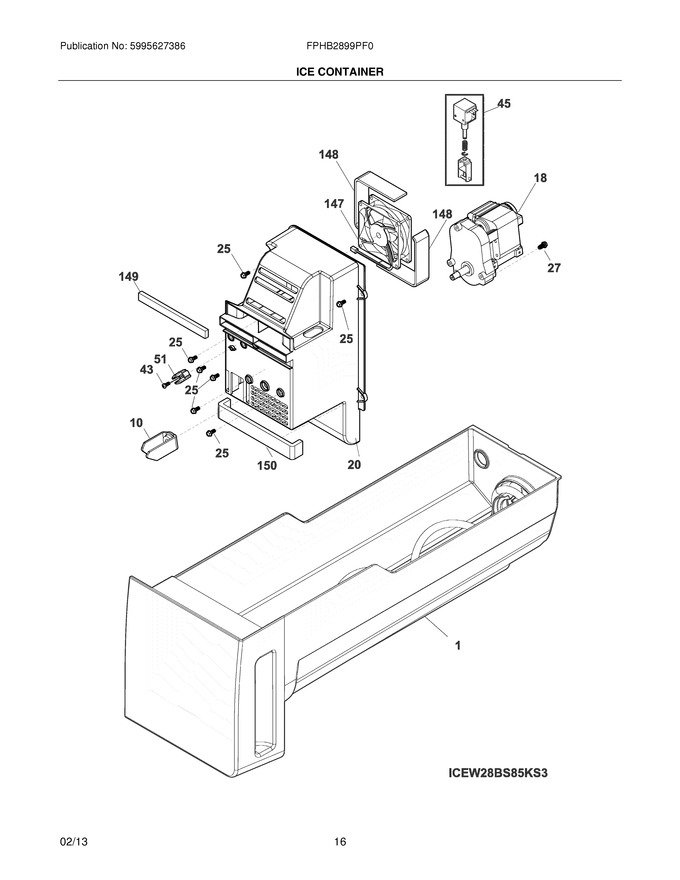

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| F1 | 242093003 | Ice Container Assy,w/moving Parts |  |
|||
| 10 | 241829001 | Bar-drive | |
|||
| F18 | 241816602 | Motor-auger | |
|||
| 20 | 242095702 | Housing-air Handler, Gen Ii Im | |
|||
| 25 | 240555002 | Screw,8-32 X 3/8 ,black (Replaces:240555004) | |
|||
| 27 | 240555002 | Screw-no.8-32 X 3/8 | |
|||
| 43 | 241641502 | Screw | |
|||
| F45 | 241675704 | Solenoid Assy,115v (Replaces:241675701) | |
|||
| 51 | 242095501 | Pin-anti Twist Bkt Gen Ii Im | |
|||
| F147 | 5304493604 | Fan Assembly,motor ,with Blade (Replaces:242119401) | |
|||
| 148 | 242095406 | Gasket | |
|||
| 149 | 5303918784 | Gasket-evap Housing,.250x.250x5.250 (Replaces:242095404) | |
|||
| 150 | 5303918784 | Gasket (Replaces:242095407) | |
|||
| FNI | 242095804 | Harness-wiring,air Handler | |
