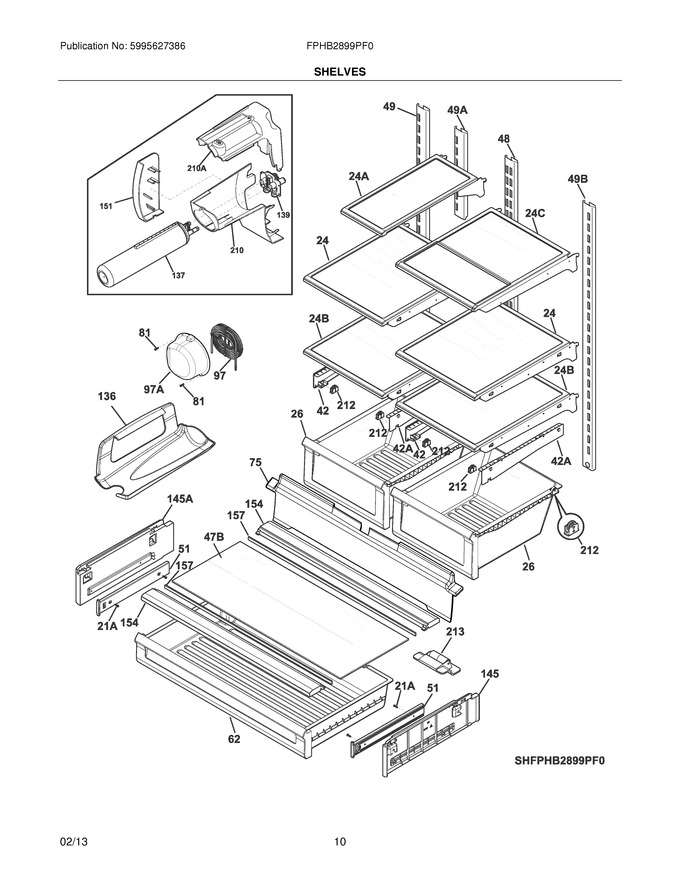

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 24 | 242068701 | Shelf-``spill-safe``,cantilever ,sliding |  |
|||
| 26 | 241801802 | Pan-crisper | |
|||
| 42 | 242067901 | Support,crspr Pan Rolle | |
|||
| 48 | 242122101 | Channel-shelf Mtg,center | |
|||
| 49 | 242122202 | Channel-shelf Mtg,side ,lh | |
|||
| 51 | 242197901 | Slide,deli ,(2) | |
|||
| 62 | 242096802 | Pan-deli | |
|||
| 75 | 242072702 | Shield-light,refr | |
|||
| 81 | 240383407 | Screw,truss Hd Quad ,no.10-16 X .500 ,white | |
|||
| 97 | 242220501 | Water Tank,coil (Replaces:242082002) | |
|||
| 136 | 241657701 | Dispenser-can,white | |
|||
| F137 | ULTRAWF | Filter-water,carbon (Replaces:241791601) | |
|||
| 139 | 242009602 | Base-water Filter (Replaces:242009601) | |
|||
| 145 | 242200003 | Support,deli Slide Rail ,rh (Replaces:242200001) | |
|||
| F145 | 242200004 | Support,deli Slide Rail ,lh (Replaces:242200002) | |
|||
| 151 | 242069701 | Cover-water Filter | |
|||
| 154 | 242082401 | Support | |
|||
| F154 | 242015001 | Screw,8-18 X 1/2 | |
|||
| 157 | 241872201 | Beam-crisper Cover | |
|||
| 210 | 241983816 | Housing-water Filtr (Replaces:241983805) | |
|||
| F210 | 241998303 | Mount-water Filter (Replaces:241998302) | |
|||
| 5304453707 | Screw,plask ,no.8-18 X .500 (Replaces:240363402) | |
||||
| 212 | 242236801 | Roller Assembly,crisper Pan | |
|||
| 213 | 242010901 | Roller Assy,deli Pan | |
|||
| 21A | 241953902 | Screw,no.8 - 18 X .380 ,3 | |
|||
| 24A | 242200501 | Shelf-``spill-safe``,cantilever ,1/4 Width,flip Up | |
|||
| 24B | 242068703 | Shelf-``spill-safe``,fixed | |
|||
| 24C | 242235501 | Shelf-``spill-safe``,cantilever ,half Width,slide Under | |
|||
| 42A | 242067801 | Support,crspr Pan Rolle | |
|||
| 47B | 242082303 | Glass,deli Cover | |
|||
| 49A | 242122001 | Channel-shelf Mtg,center ,icemaker Shelf | |
|||
| 49B | 242122301 | Channel-shelf Mtg,side ,rh | |
|||
| 97A | 242117301 | Cover-water Tank | |
|||
| F97A | 242004802 | Foam-strip | |
|||
| NI | 5304453707 | Screw,no.8-18 (Replaces:241953901) | |
|||
| 241695904 | Screw | |
||||
| 242146276 | Label,energy Guide | |
||||
| 241500303 | Screw,hex Washer Head ,8-18ab X 1/2 | |
||||
| 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile | |
