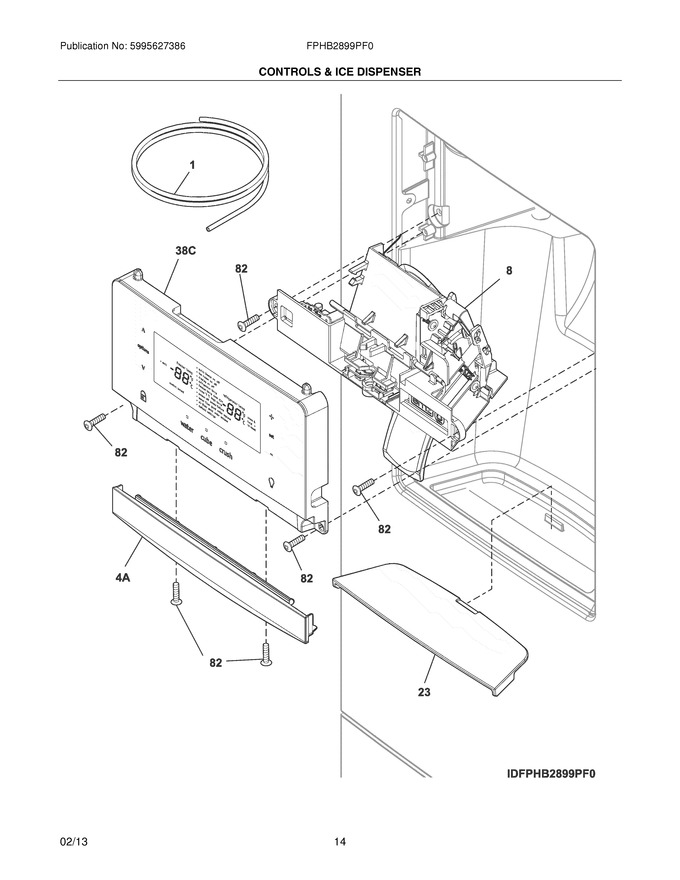

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 218976436 | Tube-water,5/16 - 42`` ,yellow ,sd (Replaces:218976434) |  |
|||
| F8 | 242074216 | Module-dispenser (Replaces:242074204) | |
|||
| 23 | 242176503 | Sump,dispenser ,grey | |
|||
| 82 | 241953902 | Screw,no.8 - 18 X .380 ,3 | |
|||
| F38C | 242058250 | User Interface,assembly ,complete ,w/gasket (Replaces:242058219) | |
|||
| 4A | 242194301 | Trim,facade ,stainless | |
|||
| FNI | 241510904 | Harness-dispenser,grounding | |
|||
| NI | 5303918484 | Chute-ice (Replaces:242105401) | |
|||
| 5303918602 | Tube-water,ice Mold Fill ,1/4 - 44`` ,blue,w/extension (Replaces:242169404) | |
||||
| 241806601 | Connector-water,straight ,5/16 To 5/16 (Replaces:242103001) | |
||||
| 241503901 | Connector-water,straight ,5/16 To 1/4 | |
||||
| 241964707 | Tube-water,1/4 - 36`` ,green | |
||||
| FNI | 5303918596 | Dispenser Heater Kit,115 (Replaces:5303918371) | |
|||
| NI | 241965906 | Tube-water,5/16 - 67`` ,natural | |
|||
| 241920106 | Tube-water,assembly ,5/16 - 54`` ,green ,ice Maker Fill,w/extension (Replaces:241920104) | |
