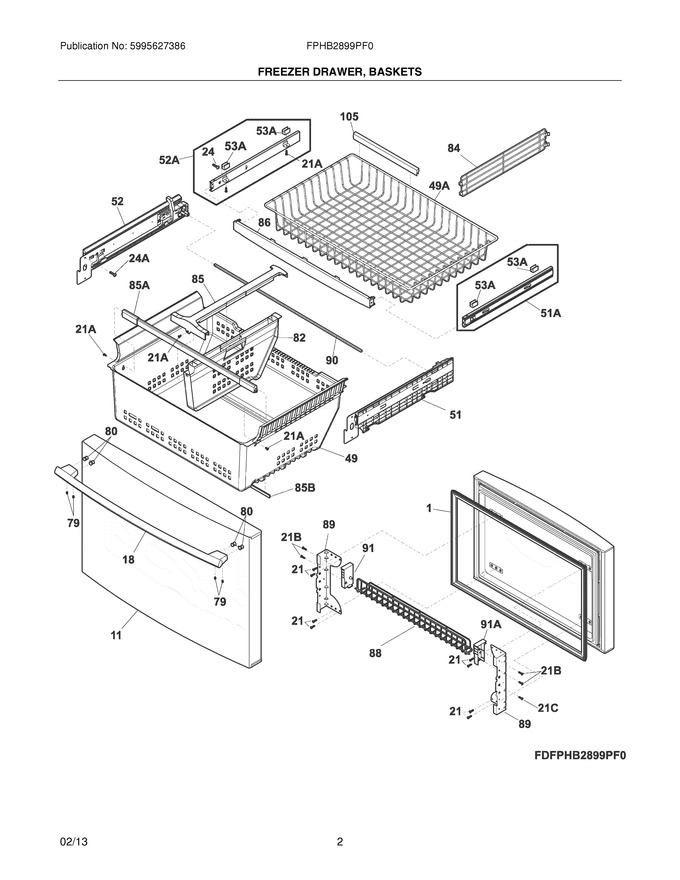

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| F1 | 5304537408 | Gasket-frzr Drawer,gray ,magnetic (Replaces:241778308) |  |
|||
| 11 | 241987921 | Door-frzr,stainless ,complete Assy | |
|||
| 18 | 242029101 | Handle-frzr Drawer,stainless | |
|||
| 21 | 241690602 | Screw,quadrex ,no.10-16 Hilo | |
|||
| 24 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces:240383406) | |
|||
| 49 | 5303918736 | Basket-frzr,plastic ,lower (Replaces:242130701) | |
|||
| 51 | 5303918690 | Slide Assembly,basket Lower ,rh ,freezer Drawer (Replaces:242130508) | |
|||
| 52 | 5303918689 | Slide Assembly,basket Lower ,lh ,freezer Drawer (Replaces:242130507) | |
|||
| 79 | 218755401 | Screw-set,10-32 X 0.375 | |
|||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting | |
|||
| 82 | 5304503705 | Divider,basket (Replaces:242131301) | |
|||
| 84 | 241780904 | Divider,basket | |
|||
| 85 | 242130901 | Divider,basket ,lower | |
|||
| 86 | 5304507340 | Trim,drawer ,stabilizer (Replaces:241807605) | |
|||
| 88 | 241824008 | Rack-non-tilt Out,door | |
|||
| 89 | 241972302 | Bracket-freezer Drawer | |
|||
| 90 | 242136901 | Bar-timing | |
|||
| 91 | 241824102 | Cap-door Rack | |
|||
| 105 | 242116801 | Trim-basket | |
|||
| 21A | 241953902 | Screw,no.8 - 18 X .380 ,3 | |
|||
| 21B | 242015001 | Screw,8-18 X 1/2 | |
|||
| 21C | 241899703 | Screw,truss Head ,no.10-32 X 1/4 ,zinc | |
|||
| 24A | 240383412 | Screw,truss Hd Quad ,no.10-16 X .750 ,zinc | |
|||
| 49A | 241780810 | Basket-frzr,upper | |
|||
| 51A | 241894223 | Slide Assembly,basket ,rh ,freezer Drawer | |
|||
| F51A | 242039701 | Screw | |
|||
| 52A | 241894224 | Slide Assembly,basket ,lh ,freezer Drawer | |
|||
| 53A | 5303918801 | Retainer-basket (Replaces:242216301) | |
|||
| 85A | 242139301 | Support-beam,divider ,lower Basket | |
|||
| 85B | 241872203 | Support-beam,lower Basket | |
|||
| 91A | 241824101 | Cap,door Rack ,white | |
|||
| NI | 242146401 | Screw,ser Hex Wash Hd ,1/4-20 X 5/8 ,(4) | |
|||
| 5304467131 | Wrench,allen (Replaces:241601001) | |
||||
| 241701902 | Screwdriver,hex ,3/32`` ,ball Driver | |
||||
| 242039702 | Screw,shoulder ,no.10-16 ,(2) | |
||||
| 242139201 | Spring-compression,divider ,lower Basket | |
||||
| 242147601 | Plate,tapping | |
||||
| 5304453707 | Screw,no.8-18 (Replaces:241953901) | |
||||
| 242011101 | Pin-lock | |
