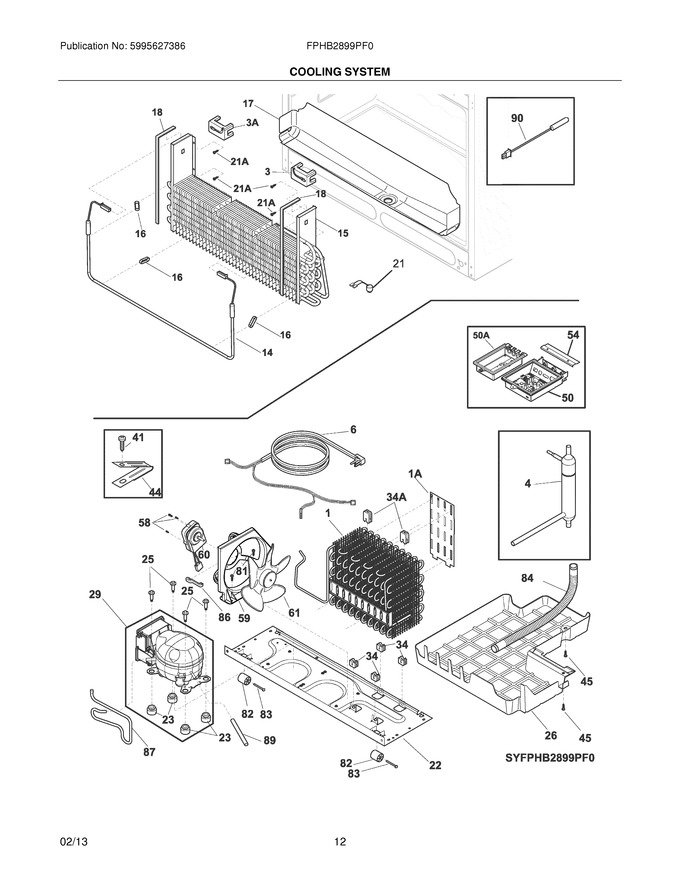

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| F1 | 241862903 | Condenser (Replaces:241862901) |  |
|||
| 3 | 241838401 | Block-evap Coil,styrofoam Insul ,rh | |
|||
| F4 | 5303305677 | Dryer-filter (Replaces:242047603) | |
|||
| F6 | 241516904 | Cord-service (Replaces:241516901) | |
|||
| F14 | 5303918410 | Defrost Heater Kit,28` | |
|||
| F15 | 5303918569 | Evaporator Kit,c/d Fdbm | |
|||
| 16 | 5308000110 | Strap-evap/heater,aluminum ,(2) | |
|||
| 17 | 241791201 | Trough-drain | |
|||
| 18 | 241860101 | Gasket,closed Cell | |
|||
| F21 | 242046001 | Thermostat-defrost | |
|||
| 22 | 241602112 | Base-compressor,w/rollers | |
|||
| 23 | 218513300 | Grommet-compr Mtg,(4) | |
|||
| 25 | 240491503 | Screw-compressor Mtg,1/4-28 X 1.16 ,(4) | |
|||
| 26 | 241920606 | Pan-defrost (Replaces:241920603) | |
|||
| F29 | 5304475104 | Compressor,w/electricals ,and Grommets (Replaces:242104102) | |
|||
| 34 | 241929901 | Grommet-cond Mtg,(4) | |
|||
| 41 | 240555002 | Screw-no.8-32 X 3/8 | |
|||
| 44 | 5303001199 | Clamp-service Cord, Strain Relief, Galv Steel (Replaces:215174700) | |
|||
| 45 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile | |
|||
| F50 | 242115283 | Board-main Power,board & Housing (Replaces:242115246) | |
|||
| 54 | 241532401 | Channel | |
|||
| 58 | 240569202 | Screw,8-18 X 0.500 (Replaces:240569201) | |
|||
| 59 | 241946106 | Shroud-cond Fan | |
|||
| F60 | 242018301 | Motor-condenser Fan | |
|||
| 61 | 241639502 | Blade-condenser Fan (Replaces:241639501) | |
|||
| 81 | 240359403 | Screw-fan Shroud,(2) | |
|||
| 82 | 5304418225 | Roller,compressor Base ,rear ,(2) | |
|||
| 83 | 5304455655 | Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin | |
|||
| 84 | 241830904 | Tube-drain,lower (Replaces:241830902) | |
|||
| 86 | 240409302 | Spacer-cond Tube,black | |
|||
| 87 | 241871501 | Tube-suction,jumper (Replaces:241846302) | |
|||
| 89 | 215346900 | Tube-process | |
|||
| 90 | 240597220 | Sensor,(2) (Replaces:240597203) | |
|||
| 1A | 241987301 | Deflector-air,condenser | |
|||
| 21A | 218362501 | Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2) | |
|||
| 34A | 241929902 | Grommet-cond Mtg,(4) | |
|||
| 3A | 241838402 | Block-evap Coil,styrofoam Insul ,lh | |
|||
| F50A | 241852501 | Clip,wiring Harness | |
|||
| 241891610 | Power Board,led (Replaces:241891609) | |
||||
| FNI | 241510904 | Harness-dispenser,grounding | |
|||
| 242119001 | Harness-wiring | |
||||
| 242141401 | Harness-wiring,machine Compt | |
||||
| NI | 218709101 | Screw,hex Head ,10-32 X 0.500 | |
|||
| 240346701 | Tape-foam Seal,shroud | |
||||
| 241810104 | Seal,housing | |
||||
| 242036801 | Clip-tube,drain | |
||||
| 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 | |
||||
| 5303918553 | Heat Exchanger Kit,suction Line ,service | |
||||
| 5303918554 | Hot Tube Repair Kit,service | |
||||
| 3205266 | Edge Protector, Wiring Harness | |
||||
| 241947701 | Spacer,heat Exchanger | |
