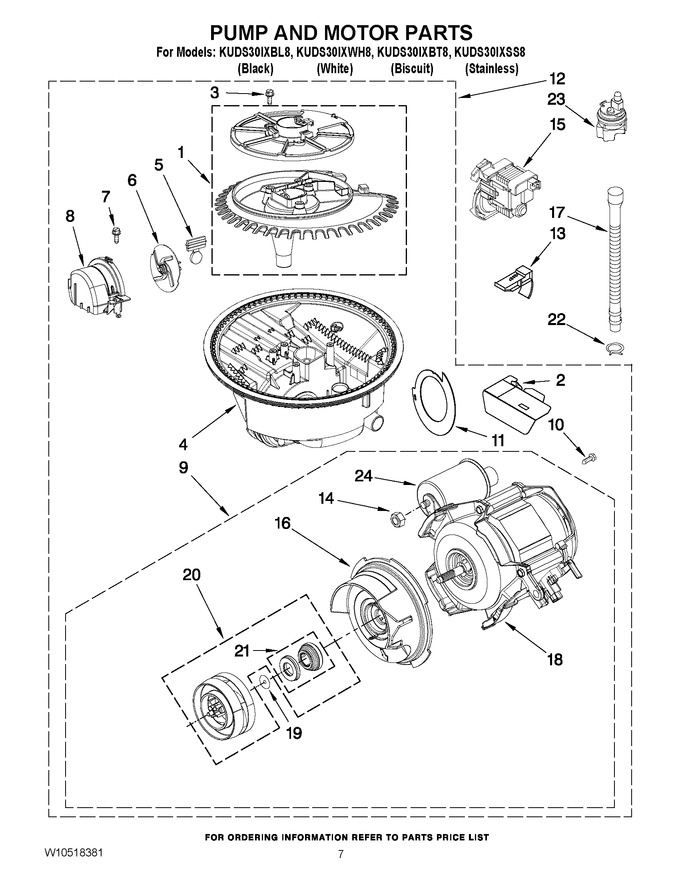

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 8193918 | Accumulator Assy (Replaces:8534952) |  |
|||
| 2 | 8283527 | Shield | |
|||
| 3 | W10348405 | Screw | |
|||
| 4 | WP8572618 | Sump With Seal | |
|||
| 5 | WP8268375 | Check Valve, Sump | |
|||
| 6 | W10083957V | Chopper Assembly (Replaces:W10083957) | |
|||
| 7 | WP9741232 | Screw | |
|||
| 8 | WP8531857 | Protector, Inlet | |
|||
| 9 | WPW10757217 | Motor Assembly (Replaces:W10239404) | |
|||
| 10 | 3400217 | Screw | |
|||
| 11 | W10084567 | Screen, Separation | |
|||
| 12 | WPW10780877 | Sump & Motor Assembly (Replaces:W10237169) | |
|||
| 13 | WPW10300599 | Tab, Sump | |
|||
| 14 | 8533949 | Nut | |
|||
| 15 | WPW10348269 | Pump, Drain (Replaces:8558995) | |
|||
| 16 | W11622922 | Volute W/seal (also Order Items 19 & 21) (Replaces:W10142656) | |
|||
| 17 | 8269144A | Hose, Drain (Replaces:8269144) | |
|||
| 18 | WPW10239401 | Motor | |
|||
| 19 | WP8531018 | Washer | |
|||
| 20 | 8193951A | Impeller (Replaces:8531017) | |
|||
| 21 | 8193951A | Face Seal Assembly Also Order Item 19) (Replaces:8268403) | |
|||
| 22 | WP8269146 | Hose Clamp | |
|||
| 23 | WPW10705575 | Optical Water Indicator (Replaces:W10134017) | |
|||
| 24 | WPW10334457 | Capacitor | |
