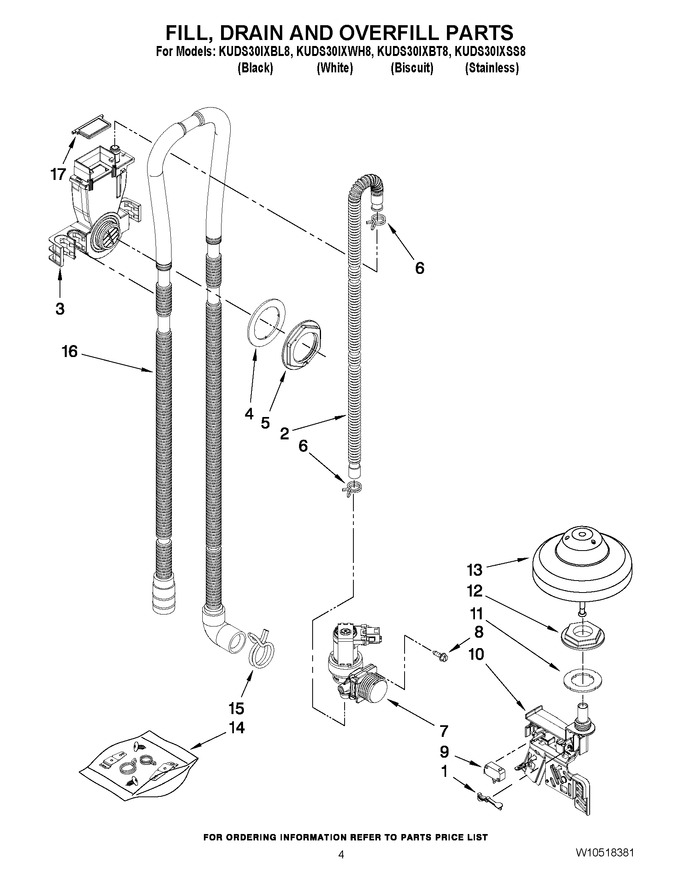

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10195037 | Lever, Overfill Switch |  |
|||
| 2 | W10878507 | Hose, Inlet (Replaces:8531412) | |
|||
| 3 | W10316375 | Water Inlet (also Order Items 4) | |
|||
| 4 | WP8531323 | Gasket | |
|||
| 5 | WPW10213825 | Nut, Inlet (also Order Item 4) (Replaces:W10213826) | |
|||
| 6 | 371505 | Clamp, Hose | |
|||
| 7 | WPW10327249 | Fill Valve Assembly (Replaces:W10316814) | |
|||
| 8 | WP489069 | Screw (Replaces:304392) | |
|||
| 9 | WPW10195039 | Switch, Overfill Control | |
|||
| 10 | W10873429 | Standpipe, Overfill (also Order No.11) (Replaces:W10195035) | |
|||
| 11 | WP8531743 | Gasket, Flat | |
|||
| 12 | WPW10195038 | Nut, Standpipe | |
|||
| 13 | WPW10195036 | Float & Retainer Assembly | |
|||
| 14 | WPW10292152 | Miscellaneous Parts Bag (contains 2 Hose Clamps, Screws & 2 Under Counter Brackets) | |
|||
| 15 | WP285655 | Clamp, Hose (Replaces:370445) | |
|||
| 16 | WPW10545278 | Drain Loop With Check Valve Assembly (Replaces:W10195750) | |
|||
| 17 | W10316376 | Flapper | |
