01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm And Strainer Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Find a Video

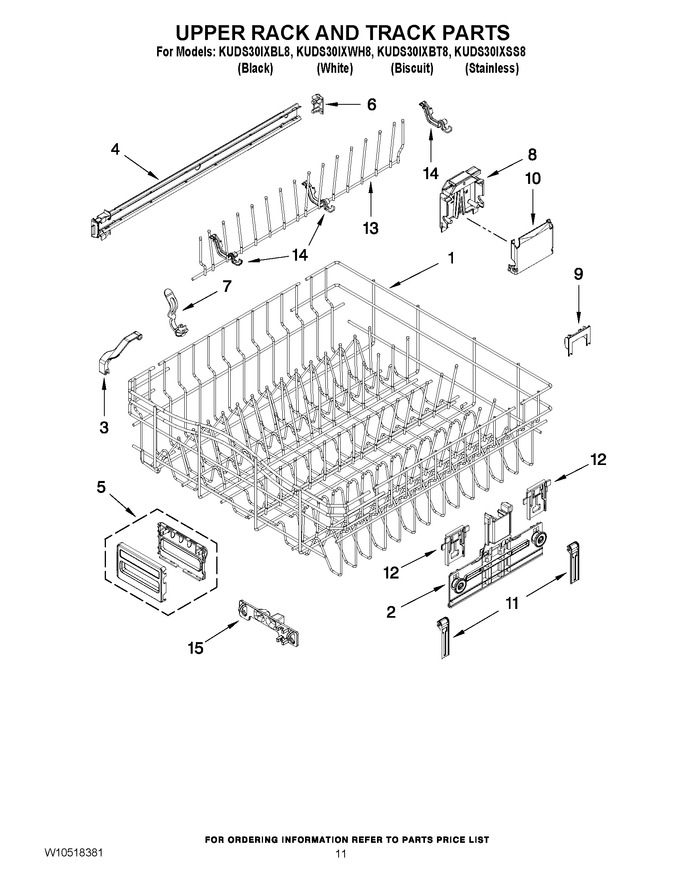

1	W10728863		Dishrack, Upper   (Replaces:W10312791)
2	W10712394		Adjuster Assembly   (Replaces:W10350376)
3	WPW10267076		Clip, Dispenser Guard
4	WPW10195623		Track, Assembly   (Replaces:W10324563)
5	W10342480		Handle, Dishrack   (Replaces:W10282826)
6	WPW10195622		Stop, Track Non-removable
7	WPW10077844		Clip, No Flip
8	WPW10320664		Housing, Adjuster (left Hand)
	WPW10588165		Housing, Adjuster (right Hand)   (Replaces:W10320665)
9	WPW10250160		Clip-lock Adjuster Arm
10	WPW10250162		Cover, Adjuster
11	WPW10195839		Strap, Tether Adjuster
12	WPW10195840		Positioner, Adjuster
13	W10727426		Tine Row   (Replaces:8562030)
14	WPW10082853		Clip, Pivot
15	WP8539102		Positioner, Dual

    View Diagram in Separate Window       Print Part List
  Move Mouse over Availability column to View Location Quantities-on-Hand
