02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm And Strainer Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Find a Video

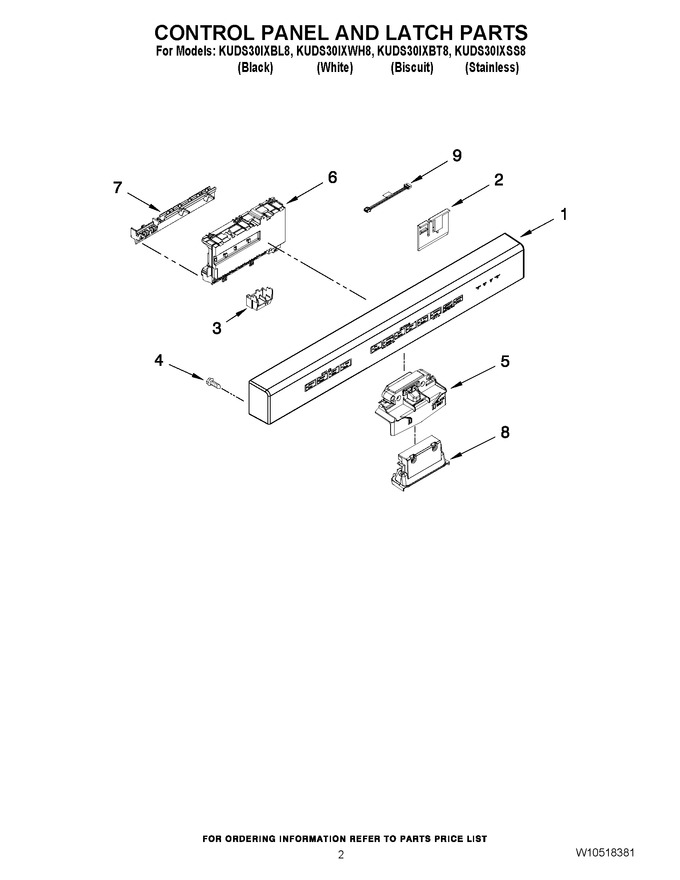

1	WPW10500174		Console Assembly (biscuit)   (Replaces:W10493296)
	WPW10500172		Console Assembly (black)   (Replaces:W10493294)
	WPW10500173		Console Assembly (white)   (Replaces:W10493295)
	WPW10500175		Console Assembly (stainless)   (Replaces:W10493297)
2	WPW10195237		Clip, Control
3	W10783730		Box, Connector   (Replaces:W10401190)
4	W10348409		Screw
5	W10619006		Latch Assembly (includes Switch)   (Replaces:W10380262)
6	W11035586		Control, Electronic   (Replaces:W10461372)
7	WPW10194937		Brace, Connector
8	WPW10195718		Handle (black)
	WPW10195833		Handle (white)
	W10195834		Handle (biscuit)
	WPW10195835		Handle (midnight Grey)
9	W10315814		Jumper, 4-wire
