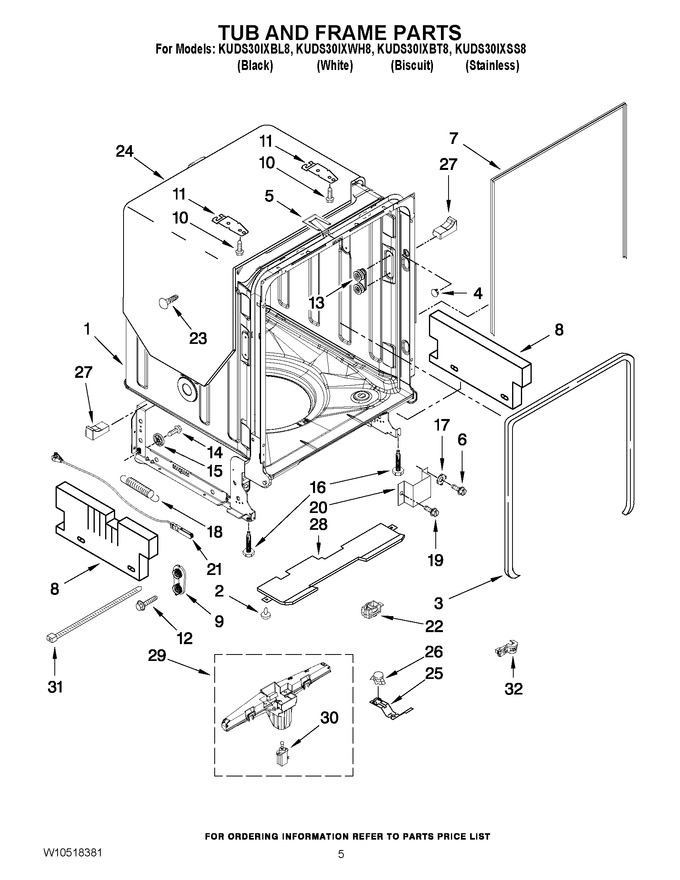

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10511199 | Tub Assembly (also Includes Heater Assembly) (Replaces:W10511187) |  |
|||
| 2 | WP3400924 | Retainer, Push | |
|||
| 3 | W11177741 | Seal, Door (Replaces:W10300924) | |
|||
| 4 | W10795980 | Plug Tub (Replaces:W10082838) | |
|||
| 5 | WPW10300779 | Strike, Plate | |
|||
| 6 | WP3400014 | Screw | |
|||
| 7 | W10864081 | Seal, Cabinet (Replaces:W10179427) | |
|||
| 8 | WPW10275523 | Side Shield (right & Left) | |
|||
| 9 | WPW10084086 | Door, Balance Assembly | |
|||
| 10 | WP308685 | Screw (Replaces:3367670) | |
|||
| 11 | WP8269145 | Bracket, Undercounter | |
|||
| 12 | WP3400074 | Screw | |
|||
| 13 | WPW10505748 | Wheel, Tub (Replaces:W10195330) | |
|||
| 14 | WPW10348411 | Screw | |
|||
| 15 | WP8268977 | Wheel Leg | |
|||
| 16 | 8193716 | Leveler, Leg (Replaces:8524584) | |
|||
| 17 | WP3378128 | Washer Pronged Cup | |
|||
| 18 | WP8270020 | Spring, Door Balance | |
|||
| 19 | WP3400892 | Screw | |
|||
| 20 | WP8268991 | Cover, Terminal Box | |
|||
| 21 | 8194001 | Cable, Door Assembly (Replaces:W10158291) | |
|||
| 22 | W10292870 | Protector | |
|||
| 23 | WP304666 | Retainer, Push | |
|||
| 24 | W10877094 | Shield, Sound Tub (Replaces:8573239) | |
|||
| 25 | W10300703 | Bracket, Thermostat | |
|||
| 26 | WPW10195091 | Thermostat (Replaces:W10339563) | |
|||
| 27 | W10195631 | Spacer, Tub Brace (right) | |
|||
| W10195630 | Spacer, Tub Brace (left) | |
||||
| 28 | W10746772 | Insulation, Bottom (Replaces:W10195367) | |
|||
| 29 | WPW10412945 | Actuator, Assembly | |
|||
| 30 | W10082769 | Motor, Wax | |
|||
| 31 | 8539404 | Wrap-tie | |
|||
| 32 | W10337661 | Strain Relief | |
