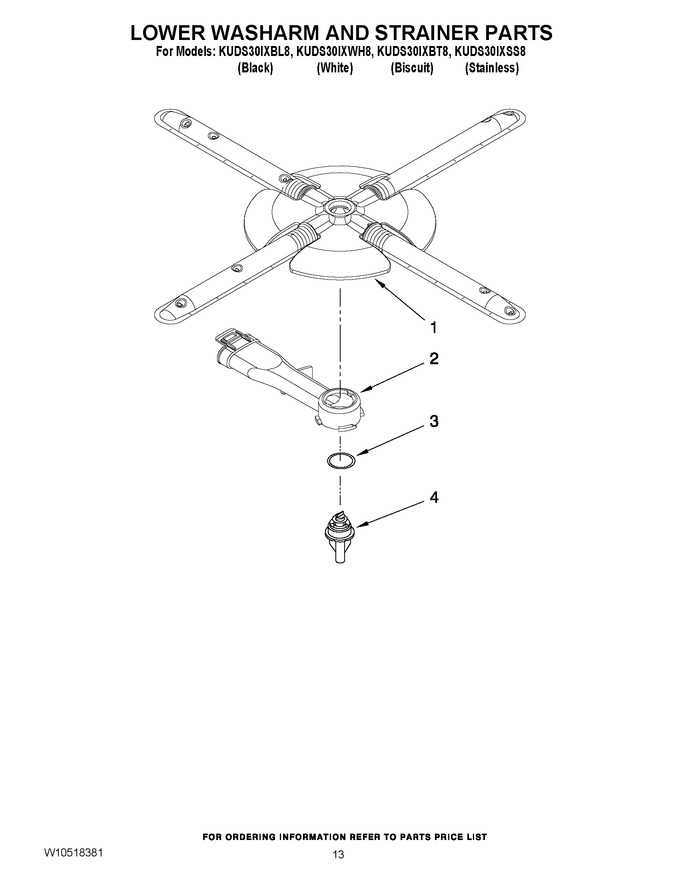

Diagram # Part Number Description Series Find a Video
1 WPW10320510 Washarm Assembly Find a Video
2 WPW10077899 Cap, Internal Rear Feed (also Order Item 3) Find a Video
3 WP8268340 Seal, Sprayarm Find a Video
4 WPW10077898 Hub, Lwr Sprayarm (also Order Item 3) Find a Video

    View Diagram in Separate Window     Print Icon   Print Part List
  Move Mouse over Availability column to View Location Quantities-on-Hand

Diagram for KUDS30IXBL8
