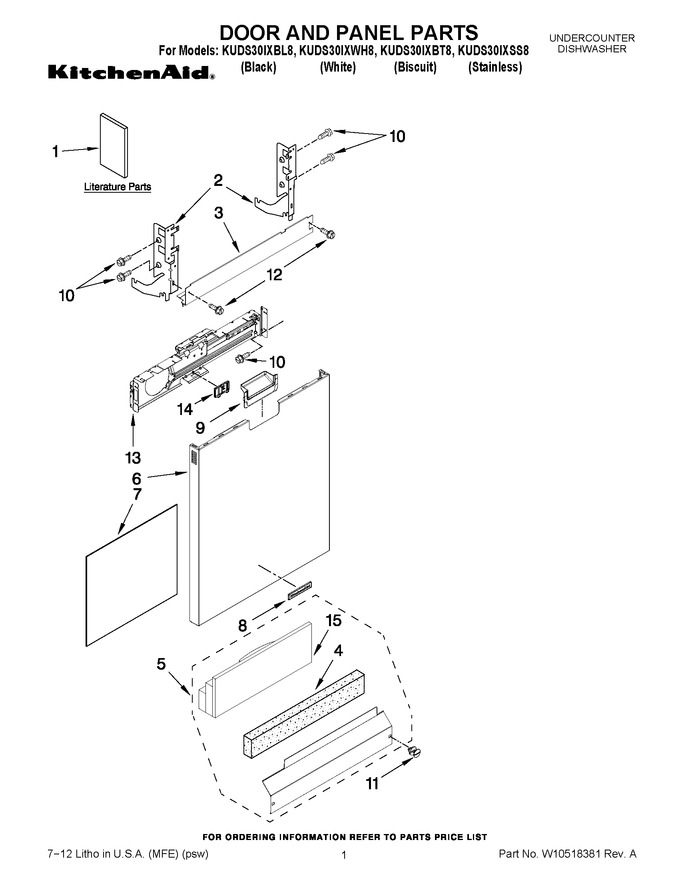

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10321879 | Tech Sheet/french |  |
|||
| W10321621 | Instructions, Installation | |
||||
| W10490721 | Energy Guide | |
||||
| W10300928 | Use & Care Guide (english/french) | |
||||
| W10300596 | Use & Care Guide (spanish) | |
||||
| W10321878 | Tech Sheet/english | |
||||
| 2 | W11612302 | Arm, Hinge (left) (Replaces:8534854) | |
|||
| W11612303 | Arm, Hinge (right) (Replaces:8534853) | |
||||
| 3 | W10850371 | Vapor Barrier Assembly (Replaces:W10321449) | |
|||
| 4 | W10831329 | Insulation, Toe Panel (Replaces:W10385107) | |
|||
| 5 | WPW10368717 | Access Panel (biscuit) | |
|||
| WPW10526114 | Access Panel (black) (Replaces:W10368715) | |
||||
| WPW10526115 | Access Panel (white) (Replaces:W10368716) | |
||||
| 6 | WPW10195532 | Panel, Full Front (includes Items 8 & 9) (black) | |
|||
| WPW10195533 | Panel, Full Front (includes Items 8 & 9) (white) | |
||||
| WPW10195534 | Panel, Full Front (includes Items 8 & 9) (biscuit) | |
||||
| WPW10195531 | Panel, Full Front (includes Items 8 & 9) (stainless) | |
||||
| 7 | W11126003 | Insulation, Front Panel (Replaces:W10315897) | |
|||
| 8 | WPW10243391 | Nameplate (stainless) | |
|||
| W10243394 | Nameplate (biscuit) | |
||||
| WPW10243393 | Nameplate (white) | |
||||
| WPW10243392 | Nameplate (black) | |
||||
| 9 | W10563099 | Pocket Assembly (stainless) (Replaces:W10195656) | |
|||
| W10195654 | Pocket Assembly (white) | |
||||
| W10195653 | Pocket Assembly (black) | |
||||
| W10195655 | Pocket Assembly (biscuit) | |
||||
| 10 | WP3400071 | Screw | |
|||
| 11 | WPW10503550 | Fastener (biscuit) (Replaces:W10331794) | |
|||
| WPW10503549 | Fastener (white) (Replaces:W10331793) | |
||||
| WPW10503548 | Fastener (black) (Replaces:W10331789) | |
||||
| 12 | WP489069 | Screw (Replaces:304392) | |
|||
| 13 | W11116870 | Bracket, Panel Control (Replaces:W10194911) | |
|||
| 14 | W10463662 | Spacer, Control Bracket | |
|||
| 15 | W10831329 | Insulation, Three Layer (Replaces:W10350437) | |
