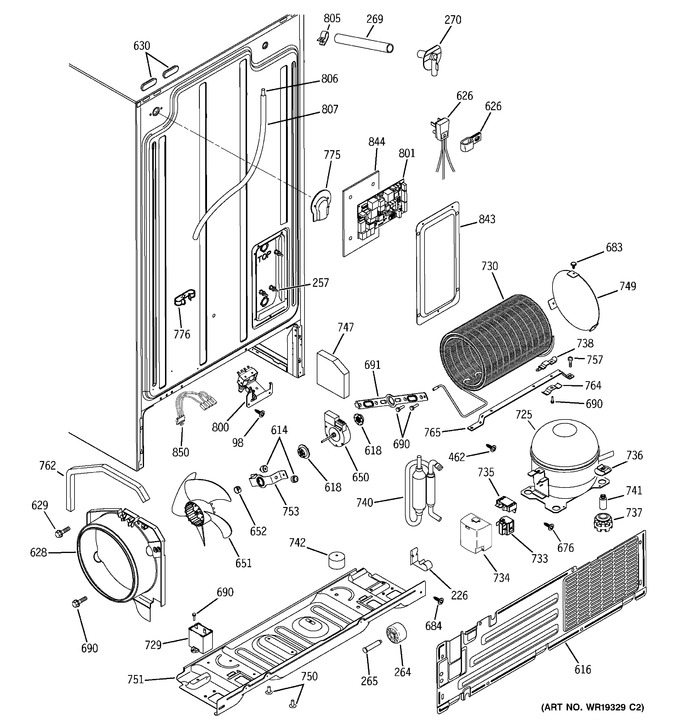

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 98 | WR1K1 | Screw 8-36 T Ihw 3/8 Sn |  |
|||
| 226 | WR02X10558 | Clip Drain Tube | |
|||
| 257 | WR02X10159 | Fastener Board | |
|||
| 264 | WR02X10695 | Wheel Mobility Rear | |
|||
| 265 | WR01X10039 | Axle Wheel | |
|||
| 269 | WR02X10960 | Tube Im Fill | |
|||
| 270 | WR02X10564 | Grommet Water Fill | |
|||
| 462 | WZ06X0136 | Scr 8-18 Ab Hxw 1/2 S | |
|||
| 614 | WR02X11329 | Bumper Lid | |
|||
| 616 | WR82X10071 | Cover Access Asm | |
|||
| 618 | WR02X10520 | Grommet Cond Fan | |
|||
| 626 | WR1X5278 | Clamp Cable | |
|||
| WR23X10300 | Cord Power Asm | |
||||
| 628 | WR17X11252 | Shroud Condenser | |
|||
| 629 | WH02X10126 | Scr 8-18 B 1hw 1/2 Sn | |
|||
| 630 | WR2X8525 | Plug Button Bk | |
|||
| 650 | WR60X10065 | Motor Dc Cond Fan | |
|||
| 651 | WR60X10049 | Blade Cond Fan Asm | |
|||
| 652 | WR02X10509 | Ring Compression Fan | |
|||
| 676 | WZ04X0263 | Scr 10-16 Ab Hxw 1/2 | |
|||
| 683 | WR02X10562 | Fastener Push | |
|||
| 684 | WB01T10047 | Scr 8-32 X .625 M Hxw S | |
|||
| 690 | WR1X1466 | Scr 8-32 T Hxw 3/8 S | |
|||
| 691 | WR02X10593 | Bracket Cond Fan (rear) | |
|||
| 725 | WR87X10041 | Comp Repl Asm | |
|||
| 729 | WR62X80 | Capacitor | |
|||
| 730 | WR84X10022 | Condenser Repl Asm | |
|||
| 733 | WR07X10052 | Relay Ptcr | |
|||
| 734 | WR2X8976 | Clip Relay Cover | |
|||
| WR2X9169 | Cover Relay | |
||||
| 735 | WR08X10028 | Overload | |
|||
| 736 | WR2X8203 | Clip Compressor Mount | |
|||
| 737 | WR02X10099 | Grommet | |
|||
| 738 | WR2X7064 | Clip Cond Loop | |
|||
| 740 | WR86X96 | Dryer Bifurcated Xh9 | |
|||
| 741 | WR1X1779 | Stud Mtg Compr | |
|||
| 742 | WR02X10587 | Support Condenser | |
|||
| 747 | WR82X10073 | Insulation Side | |
|||
| 749 | WR17X10694 | Baffle Cond Air | |
|||
| 750 | WR1X1786 | Screw 10-32 Tr 1/2 | |
|||
| 751 | WR17X11427 | Baseplate High Side | |
|||
| 753 | WR02X10521 | Brkt Cond Fan (mtg) | |
|||
| 757 | WR01X10252 | Scr 10-32 Tt Hxw 5/16 S | |
|||
| 762 | WR14X10053 | Foam Strip Se Adh | |
|||
| 764 | WR2X9000 | Clip, Cond Mnt | |
|||
| 765 | WR17X10695 | Bracket Condenser Bar | |
|||
| 775 | WR02X10047 | Cover Water Line | |
|||
| 776 | WR02X10522 | Clamp Tube | |
|||
| 800 | WR57X10040 | Water Valve | |
|||
| 801 | WR55X10174 | Board Asm Main Control | |
|||
| 805 | WR2X3736 | Str Relief | |
|||
| 806 | WR17X10733 | Tube Plastic | |
|||
| 807 | WR17X11325 | Cover Plastic | |
|||
| 843 | WR17X11476 | Cover Enclosure | |
|||
| 844 | WR02X10569 | Insulator Main Board | |
|||
| 850 | WR23X10310 | Harn Valv/comp | |
