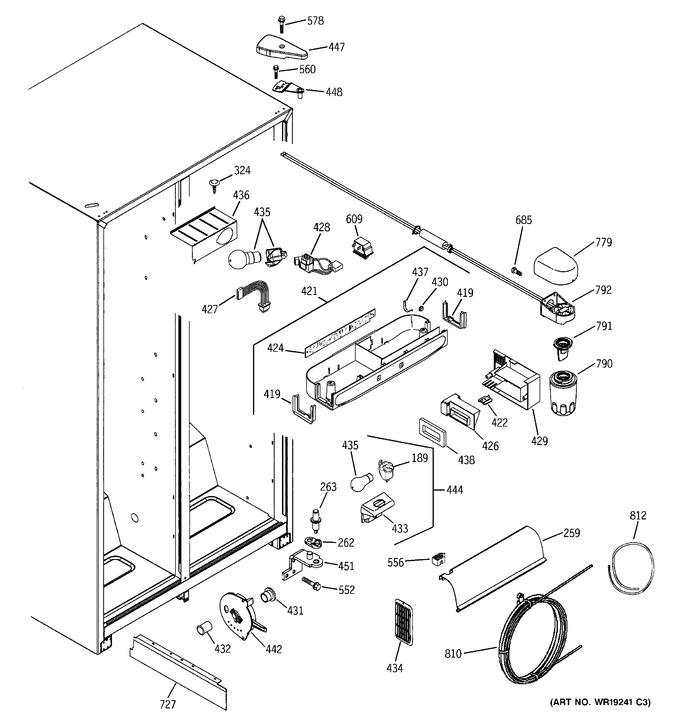

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 189 | WR02X11127 | Socket Lamp |  |
|||
| 259 | WR17X10725 | Shield Light Lower | |
|||
| 262 | WR02X11286 | Hinge Cam Riser | |
|||
| 263 | WR02X10592 | Pin Hinge Btm Adj | |
|||
| 324 | WR2X7051 | Plug Button Sm Wh | |
|||
| 419 | WR14X10154 | Gasket Control Housing | |
|||
| 421 | WR17X11420 | Board Asm Temp | |
|||
| 422 | WR02X10546 | Clip Damper Cover | |
|||
| 424 | WR55X10285 | Board Asm Temp Control | |
|||
| 426 | WR60X10079 | Damper & Thermister Asm | |
|||
| 427 | WR23X10309 | Harness Control Top | |
|||
| 428 | WR23X10245 | Harness Lt & Sw | |
|||
| 429 | WR02X11250 | Cover Damper | |
|||
| 430 | WR02X11467 | Pin Switch | |
|||
| 431 | WR2X9299 | Cap Mullion Duct | |
|||
| 432 | WR02X10561 | Duct Mullion | |
|||
| 433 | WR02X11126 | Housing Lamp Socket | |
|||
| 434 | WR17X10262 | Grille Air Return | |
|||
| 435 | 60A | Lamp 60w Appl | |
|||
| WR02X10591 | Socket & Terminal | |
||||
| 436 | WR02X10578 | Reflector Lamp | |
|||
| 437 | WR02X11468 | Retainer Control Board | |
|||
| 438 | WR14X10047 | Gasket Damper | |
|||
| 442 | WR02X10042 | Control Meat Pan Asm | |
|||
| 444 | WR23X10247 | Housing Light Lwr Asm | |
|||
| 447 | WR02X11482 | Cover Hng Bk | |
|||
| 448 | WR13X10285 | Hinge Top & Pin Asm Ff | |
|||
| 451 | WR13X10287 | Ff Hinge Btm & Pin Asm | |
|||
| 552 | WR01X10034 | Scr 12-24 Tt Ih .811 S | |
|||
| 556 | WH12X497 | Housing Terminal | |
|||
| 560 | WR01X10195 | Scr 12-24 Ca Hx 7/8 S | |
|||
| 578 | WR01X10379 | Screw Hinge Cover | |
|||
| 609 | WR23X10162 | Switch Light | |
|||
| 685 | WR1X1804 | Scr 8-18 Ab Hxw 3/4 Wh | |
|||
| 727 | WR17X11409 | Separator Air Hi Side | |
|||
| 779 | WR02X10557 | Cover Water Filter | |
|||
| 790 | GWF | Filter Canister | |
|||
| 791 | WR02X10577 | Plug Bypass Filter | |
|||
| 792 | WR17X11028 | Filter Asm And Tube | |
|||
| 810 | WR17X11324 | Water Storage Coil | |
|||
| 812 | WR17X11141 | Tube Plastic | |
