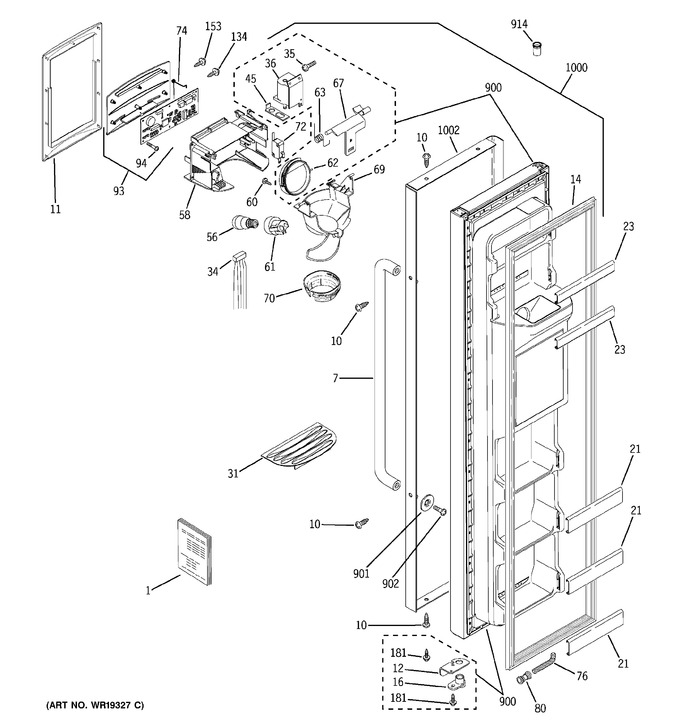

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 49-60234 | Pm Guide Owners |  |
|||
| 31-51446 | Pm Mini Manual Wiring | |
||||
| 7 | WR12X10629 | Handle Tube | |
|||
| 10 | WR01X10065 | Scr 8-18 Ba Por 5/8 Ss | |
|||
| 11 | WR38X10314 | Trim Recs Bk | |
|||
| 12 | WR02X11466 | Plate Door Stop Fz | |
|||
| 14 | WR24X10133 | Gasket Dr Fz | |
|||
| 16 | WR02X11478 | Cam & Thimble Fz | |
|||
| 21 | WR17X10709 | Front Door Shelf | |
|||
| 23 | WR17X10710 | Front Door Shelf | |
|||
| 31 | WR17X10745 | Grill Recess Bk | |
|||
| 34 | WR23X10166 | Harness Recess Disp | |
|||
| 35 | WR01X10221 | Scr 8-10 Pl Pnp 1/2 S | |
|||
| 36 | WR62X10020 | Solenoid Asm | |
|||
| 45 | WR2X8818 | Retainer Recess Door | |
|||
| 56 | WR02X10675 | Light Dispenser | |
|||
| 58 | WR17X11170 | Housing Shield Disp | |
|||
| 60 | WR01X10377 | Scr 4-10 Pl Pnp 5/16 S5h | |
|||
| 61 | WR2X9561 | Lamp Socket | |
|||
| 62 | WR17X3093 | Door Recess Asm | |
|||
| 63 | WR02X10585 | Spring Recess Door | |
|||
| 67 | WR17X10706 | Crank Door Recess | |
|||
| 69 | WR17X11267 | Funnel Ice Disp Bk | |
|||
| 70 | WR17X11268 | Extension Funnel Ice Bk | |
|||
| 72 | WR23X10224 | Switch | |
|||
| 74 | WR02X10584 | Spring Funnel | |
|||
| 76 | WR2X8933 | Sleeve Water Line | |
|||
| 80 | WR02X11330 | Union Connector | |
|||
| 93 | WR55X10292 | Interface Disp Asm Bk | |
|||
| 94 | WR01X10319 | Scr 6-19x1/3 Torx Pan He | |
|||
| 134 | WR01X10019 | Scr 6-10 Pl Flp 1/2 S | |
|||
| 153 | WR1X1505 | Screw | |
|||
| 181 | WR01X10215 | Scr 10-32 Tt Hxw 3/4 S | |
|||
| 900 | WR78X10677 | Door Fz Blk | |
|||
| 901 | WR01X10417 | Spacer Handle | |
|||
| 902 | WR01X10418 | Screw 1/4-28 X 3/8 | |
|||
| 914 | WR01X10200 | Thimble Door Top | |
|||
| 1000 | WR99X10045 | Dr Ssclad Fz Asm | |
|||
| 1002 | WR99X10052 | Clad Ss Door Outer Fz | |
