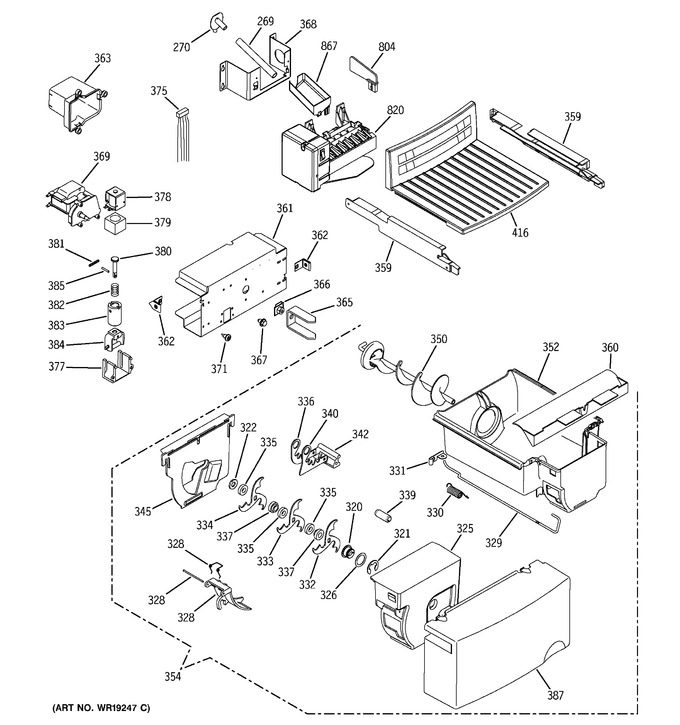

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 269 | WR02X10960 | Tube Im Fill |  |
|||
| 270 | WR02X10564 | Grommet Water Fill | |
|||
| 320 | WR01X10315 | Nut Auger Frt Disp | |
|||
| 321 | WR1X1367 | Retainer Ring E | |
|||
| 322 | WR02X11266 | Spacer Crusher Middle | |
|||
| 325 | WR17X11505 | Housing Crusher Disp | |
|||
| 326 | WR1X1366 | Washer | |
|||
| 328 | WR2X4561 | Spring Ice Deflector | |
|||
| WR2X4143 | Pin Deflector Disp | |
||||
| WR17X10703 | Deflector Ice Disp | |
||||
| 329 | WR17X11403 | Wire Actuator Disp | |
|||
| 330 | WR02X10583 | Spring Deflector | |
|||
| 331 | WR02X10580 | Retainer Spring | |
|||
| 332 | WR17X11239 | Blades Moving Disp | |
|||
| 333 | WR17X11240 | Blades Moving Disp | |
|||
| 334 | WR17X11241 | Blades Moving Disp | |
|||
| 335 | WR2X4139 | Spacer Crusher Middle | |
|||
| 336 | WR17X1009 | Blade Stationary Disp | |
|||
| 337 | WR2X4138 | Spacer Crusher Stationar | |
|||
| 339 | WR2X4141 | Pin Spiral | |
|||
| 340 | WR17X2058 | Blade Stationary Disp | |
|||
| 342 | WR02X10691 | Stationary Blades Asm | |
|||
| 345 | WR17X11497 | Cover Crusher Hsg Disp | |
|||
| 350 | WR17X11305 | Auger Asm Disp | |
|||
| 352 | WR30X10016 | Bucket Ice Disp | |
|||
| 354 | WR17X11419 | Bucket & Auger Asm | |
|||
| 359 | WR72X10047 | Glide Bucket Lh Disp | |
|||
| WR72X10048 | Glide Bucket Rh Disp | |
||||
| 360 | WR17X11449 | Diverter Overflow | |
|||
| 361 | WR17X11323 | Cover Motor & Solenoid | |
|||
| 362 | WR02X10971 | Bracket Shelf | |
|||
| 363 | WR02X11295 | Boot Auger Motor | |
|||
| 365 | WR02X10565 | Drive Auger Disp | |
|||
| 366 | WR01X10190 | Nut J | |
|||
| 367 | WR01X10198 | Scr 8-18 Tpt 1/4 | |
|||
| 368 | WR02X10981 | Bracket Im Mounting | |
|||
| 369 | WR60X10103 | Motor Crusher Disp | |
|||
| 371 | WR01X10192 | Scr 10-18 Hi/lo Hxw 1/2 | |
|||
| 375 | WR23X10157 | Harness Motor Disp | |
|||
| 377 | WR2X7309 | Saddle Solenoid | |
|||
| 378 | WR62X58 | Solenoid & Arm Asm | |
|||
| 379 | WR17X1063 | Shroud Solenoid | |
|||
| 380 | WR17X1064 | Plunger Solenoid | |
|||
| 381 | WR2X4257 | Pin Spiral | |
|||
| 382 | WR2X4258 | Spring Solenoid Linkage | |
|||
| 383 | WR17X1065 | Collar Solenoid Disp | |
|||
| 384 | WR17X1066 | Stirrup Solenoid Disp | |
|||
| 385 | WR2X4259 | Pin Spiral | |
|||
| 387 | WR17X10779 | Cover Bucket Disp | |
|||
| 416 | WR71X10393 | Shelf Chiller | |
|||
| 804 | WR29X10054 | Im Guardrail | |
|||
| 820 | WR30X10012 | Icemaker Asm | |
|||
| 867 | WR29X10058 | Cup Fill Im | |
