1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section

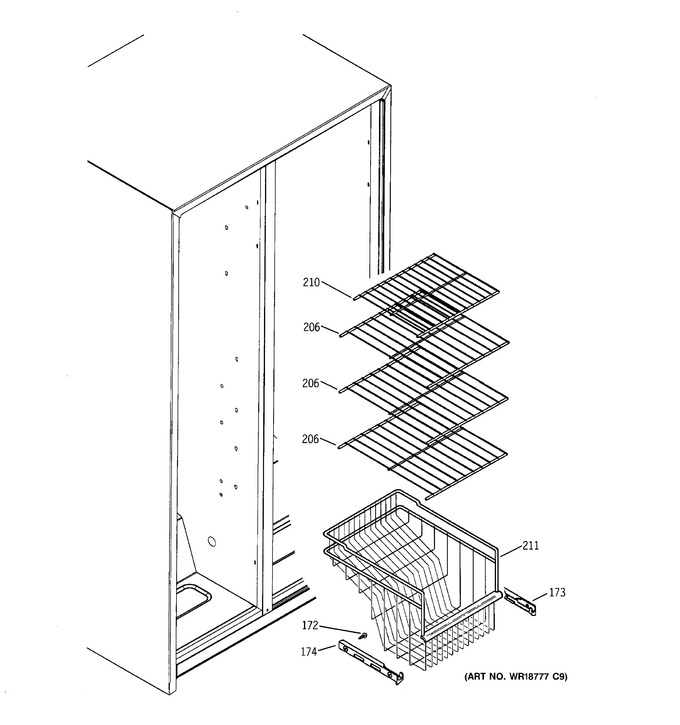

4 - Freezer Shelves


5 - Ice Maker & Dispenser


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Sealed System & Mother Board


Diagram #	Part Number		Description	Series	Find a Video
172	WR01X10380		Scr 8-18 Ab Tsq 5/8 Ss
173	WR72X10095		Support Slide Basket Rh
174	WR72X10135		Support Slide Basket Asm
206	WR71X1936		Shelf Fz
210	WR71X10230		Shelf Fz 3/4
211	WR21X10021		Bin Wire Slideout Fz
