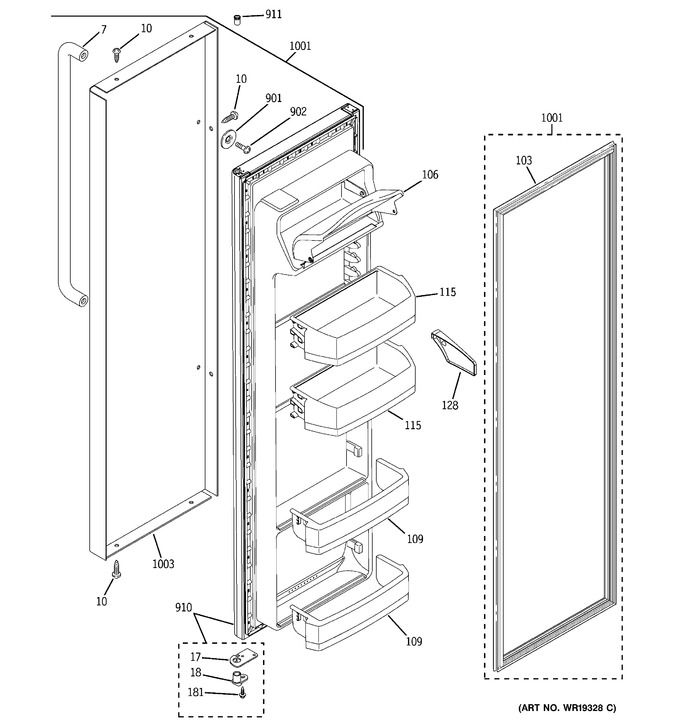

View Diagram in Separate Window
Print Part List
Move Mouse over Availability column to View Location Quantities-on-Hand
Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
7 | WR12X10629 | Handle Tube | ||||
10 | WR01X10065 | Scr 8-18 Ba Por 5/8 Ss | ||||
17 | WR02X11465 | Plate Door Stop Ff | ||||
18 | WR02X11479 | Cam & Thimble Ff | ||||
103 | WR24X10132 | Gasket Dr Ff | ||||
106 | WR22X10012 | Door Dairy | ||||
109 | WR71X10232 | Shelf Module Fixed Ff | ||||
115 | WR71X10231 | Shelf Module Ff | ||||
128 | WR02X10582 | Snugger Module | ||||
181 | WR01X10215 | Scr 10-32 Tt Hxw 3/4 S | ||||
901 | WR01X10417 | Spacer Handle | ||||
902 | WR01X10418 | Screw 1/4-28 X 3/8 | ||||
910 | WR78X10668 | Door Ff Bk | ||||
911 | WR01X10201 | Thimble Top Closed | ||||
1001 | WR99X10049 | Dr Ssclad Ff Asm | ||||
1003 | WR99X10051 | Clad Ss Door Outer Ff |
