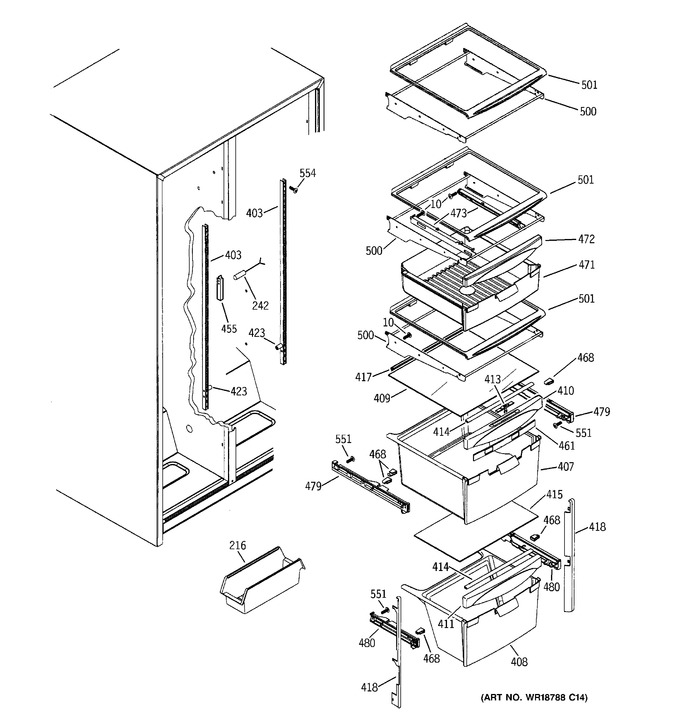

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 10 | WR01X10065 | Scr 8-18 Ba Por 5/8 Ss |  |
|||
| 216 | WR32X1575 | Bucket Utility Clr | |
|||
| 242 | WR50X10034 | Sensor Temp | |
|||
| 403 | WR72X254 | Track Cant Shelf | |
|||
| 407 | WR32X10133 | Pan Veg | |
|||
| 408 | WR32X10131 | Pan Meat | |
|||
| 409 | WR32X10130 | Cover Pan Glass | |
|||
| 410 | WR17X11139 | Handle Veg Pan | |
|||
| 411 | WR17X11250 | Handle Pan Meat | |
|||
| 413 | WR02X11174 | Button Slide | |
|||
| 414 | WR14X10084 | Gasket Pan Cover Frt | |
|||
| 415 | WR32X10129 | Cover Pan Glass | |
|||
| 417 | WR14X10052 | Gasket Shield Lower | |
|||
| 418 | WR17X10729 | Trim Pan Lh | |
|||
| WR17X10730 | Trim Pan Rh | |
||||
| 423 | WR2X6347 | Support Shield Top | |
|||
| 455 | WR02X10622 | Cover Sensor Ff | |
|||
| 461 | WR72X10083 | Slide Pan | |
|||
| 468 | WR1X2048 | Bearing Slide | |
|||
| 471 | WR32X10294 | Pan Snack Upper | |
|||
| 472 | WR17X10827 | Handle Pan Snack | |
|||
| 473 | WR72X10059 | Slide Pan Lh | |
|||
| WR72X10058 | Slide Pan Rh | |
||||
| 479 | WR72X239 | Slide Asm Lh | |
|||
| WR72X240 | Slide Asm Rh | |
||||
| 480 | WR72X241 | Slide Asm Lh | |
|||
| WR72X242 | Slide Asm Rh | |
||||
| 500 | WR71X10480 | Shelf Cant Spillprf | |
|||
| 501 | WR32X10405 | Shelf Slide Out Asm | |
|||
| 551 | WZ04X0244 | Scr 8-18 Ab Rndw 5/8 Ss | |
|||
| 554 | WR1X2141 | Scr 10-24 Tr Hxw I S | |
