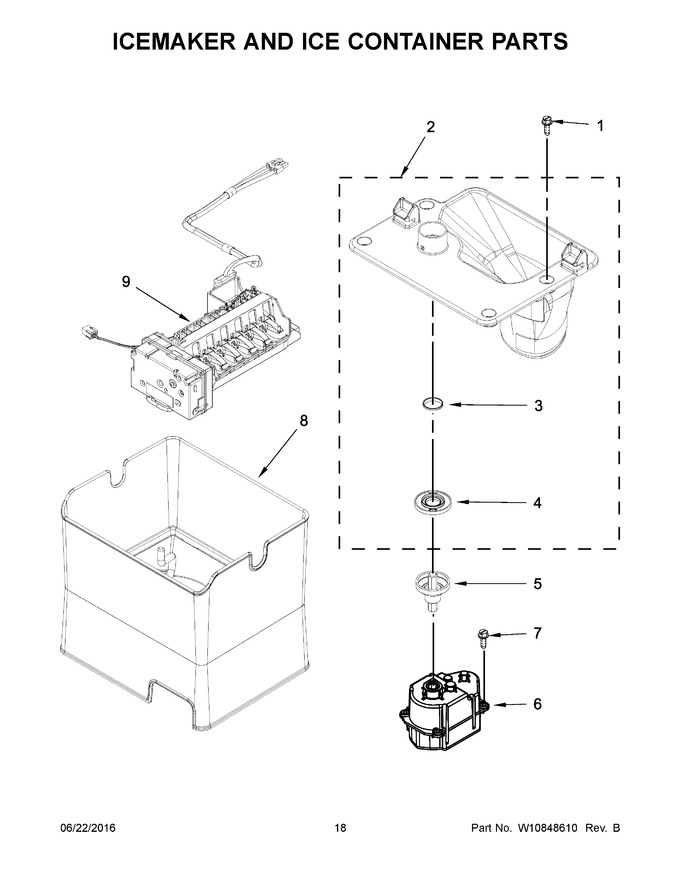

Diagram #	Part Number		Description	Series	Find a Video
1	WPW10272364		Screw
2	W10837274		Plate, Ice Chute   (Replaces:W10347051)
3	WP2198628		Seal
4	W10847834		Clip, Retainer   (Replaces:W10347120)
5	W11509548		Shaft, Motor   (Replaces:W10347114)
6	W10822606		Motor, Dispenser   (Replaces:W10215646)
7	WP8281163		Screw (stainless)
8	WPW10347093		Assembly, Ice Container
9	W11658802		Assembly, Icemaker   (Replaces:W10746960)
