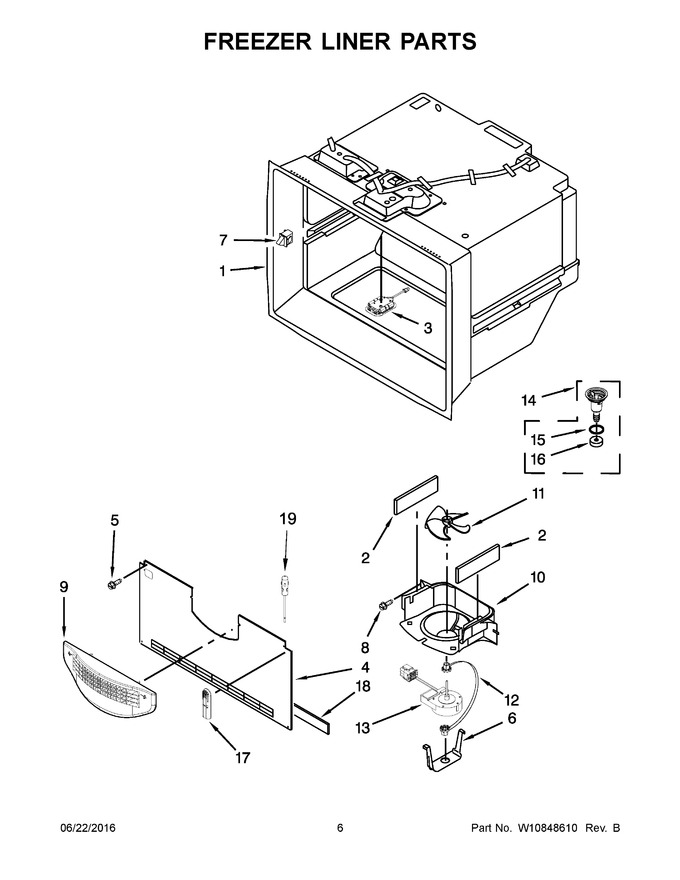

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |  |
|||
| 2 | W10856123 | Gasket, Foam (Replaces:A3189392) | |
|||
| 3 | W11683243 | Assembly, Led Light Module (Replaces:W10660728) | |
|||
| 4 | W11690163 | Cover, Evaporator (Replaces:W10513424) | |
|||
| 5 | 67006425 | Screw (Replaces:12990511) | |
|||
| 6 | W11712696 | Clip, Fan Motor (Replaces:12956601) | |
|||
| 7 | W11384469 | Switch, Light (Replaces:C3680310V) | |
|||
| 8 | WP98165 | Screw (Replaces:12990504) | |
|||
| 9 | W10871842 | Grille, Air (freezer) (Replaces:W10496613) | |
|||
| 10 | WPW10363507 | Shroud, Evaporator Fan | |
|||
| 11 | WP67006337 | Blade, Fan (Replaces:12986101) | |
|||
| 12 | W11676465 | Grommet, Fan Motor (Replaces:12951101) | |
|||
| 13 | W11452196 | Motor, Evaporator (includes Harness, Thermistor, And Defrost Thermostat) (Replaces:W10728094) | |
|||
| 14 | W10503218 | Assembly, Drain Funnel | |
|||
| 15 | WPM0500703 | Seal | |
|||
| 16 | WPB8381501 | Gasket, Drain | |
|||
| 17 | W11661208 | Cover, Thermistor (Replaces:W10405166) | |
|||
| 18 | W10668165 | Gasket, Dual Evaporator (Replaces:W10531268) | |
|||
| 19 | W10316760 | Thermistor (Replaces:W10280385) | |
