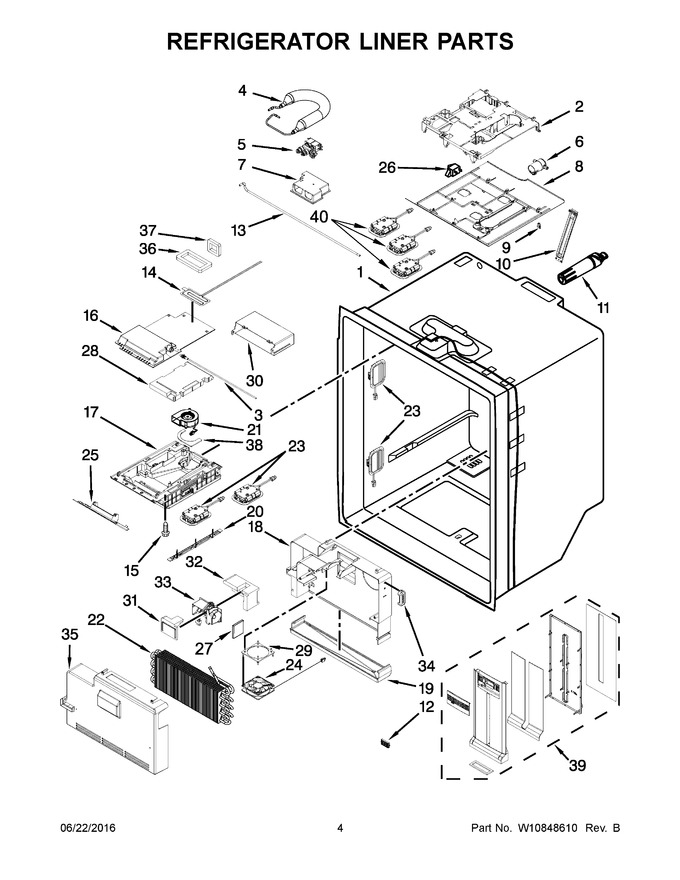

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |  |
|||
| 2 | W10842950 | Housing, Water System (Replaces:W10705147) | |
|||
| 3 | W11686799 | Tube, Fill (Replaces:W10736144) | |
|||
| 4 | W11168758 | Reservoir, Water (also Order Wire Tie Part 8567668) (Replaces:W10711460) | |
|||
| 5 | WPW10341329 | Valve, Dual Water | |
|||
| 6 | W11194438 | Housing, Water Filter (Replaces:W10238156) | |
|||
| 7 | W10811115 | Enclosure, Valve (Replaces:W10279854) | |
|||
| 8 | W11190820 | Cover, Waterbox (Replaces:W10669663) | |
|||
| 9 | WP2223877 | Latch, Push | |
|||
| 10 | WPW10277949 | Door, Filter Access | |
|||
| 11 | EDR2RXD1 | Filter, Water (Replaces:W10680605) | |
|||
| 12 | W10311524 | Filter, Air (Replaces:W10315189) | |
|||
| 13 | W11579166 | Waterline, Valve To Hinge (Replaces:W10674102) | |
|||
| 14 | W11087201 | Heater, Fill Tube (Replaces:W10706850) | |
|||
| 15 | WP67006908 | Screw (Replaces:12990518) | |
|||
| 16 | WPW10598013 | Cover, Icebox | |
|||
| 17 | W11242954 | Assembly, Icebox (foamed) (Replaces:W10811686) | |
|||
| 18 | WPW10469927 | Enclosure, Evaporator | |
|||
| 19 | W11457241 | Pan, Drain (Replaces:W10525237) | |
|||
| 20 | W10505516 | Trim, Icebox | |
|||
| 21 | W10846539 | Fan, Icebox (Replaces:W10460280) | |
|||
| 22 | W11492867 | Assembly, Evaporator (Replaces:W10630535) | |
|||
| 23 | W11683243 | Assembly, Led Light Module (Replaces:W10660728) | |
|||
| 24 | W11033168 | Harness, Evaporator Wire (includes Evaporator Motor And Thermistors) (Replaces:W10799425) | |
|||
| 25 | W11637688 | Assembly, Fascia (Replaces:W10553630) | |
|||
| 26 | W11384469 | Switch, Light (Replaces:C3680310V) | |
|||
| 27 | W10470981 | Gasket, Damper | |
|||
| 28 | WPW10280983 | Insulation | |
|||
| 29 | WPW10389152 | Support, Fan | |
|||
| 30 | WPW10635022 | Adapter, Icebox | |
|||
| 31 | W11225849 | Retainer, Damper (Replaces:W10503491) | |
|||
| 32 | W11230117 | Support, Damper (Replaces:W10503492) | |
|||
| 33 | WPW10248595 | Damper, Electronic Control | |
|||
| 34 | W11190819 | Cover, Thermistor (Replaces:W10561160) | |
|||
| 35 | WPW10501260 | Cover, Evaporator | |
|||
| 36 | WPW10280988 | Gasket, Rear Supply | |
|||
| 37 | WPW10320706 | Gasket, Rear Return | |
|||
| 38 | WPW10392172 | Gasket, Fan | |
|||
| 39 | W10830496 | Assembly, Air Tower (Replaces:W10749500) | |
|||
| 40 | W11683243 | Harness, Led Wire (includes Led Lights) (Replaces:W10610289) | |
|||
| NI | N/P | Following Parts Not Illustrated | |
|||
| W10762407 | Harness, Refrigerator Lights | |
||||
| W10859326 | Harness, Dual Valve (Replaces:W10570599) | |
