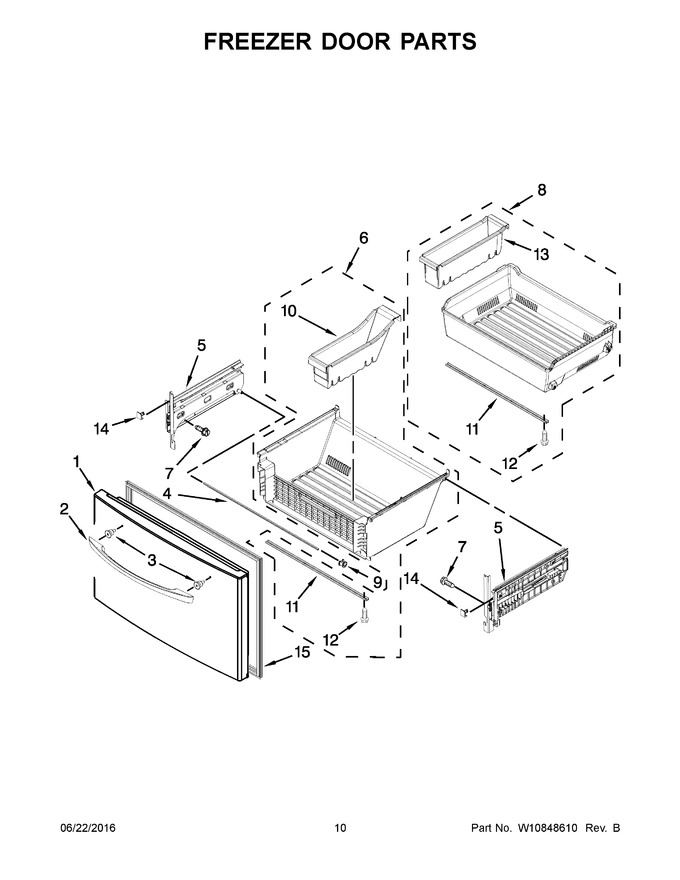

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | LW10624495 | Door, Freezer (white) (Replaces:W10624495) |  |
|||
| 2 | W10827046 | Handle, Door (stainless) (Replaces:W10719666N) | |
|||
| 3 | WPW10661886 | Screw (Replaces:W10460893) | |
|||
| 4 | WPW10503522 | Shaft | |
|||
| 5 | W11668671 | Assembly, Bracket (left Hand) (Replaces:W10795770) | |
|||
| 6 | W10594047 | Bin, Lower | |
|||
| 7 | WP67006908 | Screw (Replaces:12990518) | |
|||
| 8 | W10704090 | Bin, Upper | |
|||
| 9 | W10852685 | Clip, Shaft (Replaces:W10709748) | |
|||
| 10 | W10507444 | Divider, Lower | |
|||
| 11 | W10469177 | Support, Pan | |
|||
| 12 | WP489443 | Screw (stainless) | |
|||
| 13 | WPW10485654 | Divider, Upper | |
|||
| 14 | WPW10485096 | Stop, Pan (left Hand) | |
|||
| 15 | W10638486 | Gasket, Door (white) (Replaces:W10587578) | |
|||
| 14A | WPW10485089 | Stop, Pan (right Hand) | |
|||
| 15A | W10407215 | Gasket, Door (black) (Replaces:W10248748) | |
|||
| 15B | W10407216 | Gasket, Door (grey) (Replaces:W10248749) | |
|||
| 1A | LW10341277 | Door, Freezer (black) (Replaces:W10341277) | |
|||
| 1B | LW10341279 | Door, Freezer (stainless) (Replaces:W10341279) | |
|||
| 5A | W11668671 | Assembly, Bracket (right Hand) (Replaces:W10795768) | |
