New Model Search:



Manufacturer: Whirlpool

Keyword Search:


< Back to Home

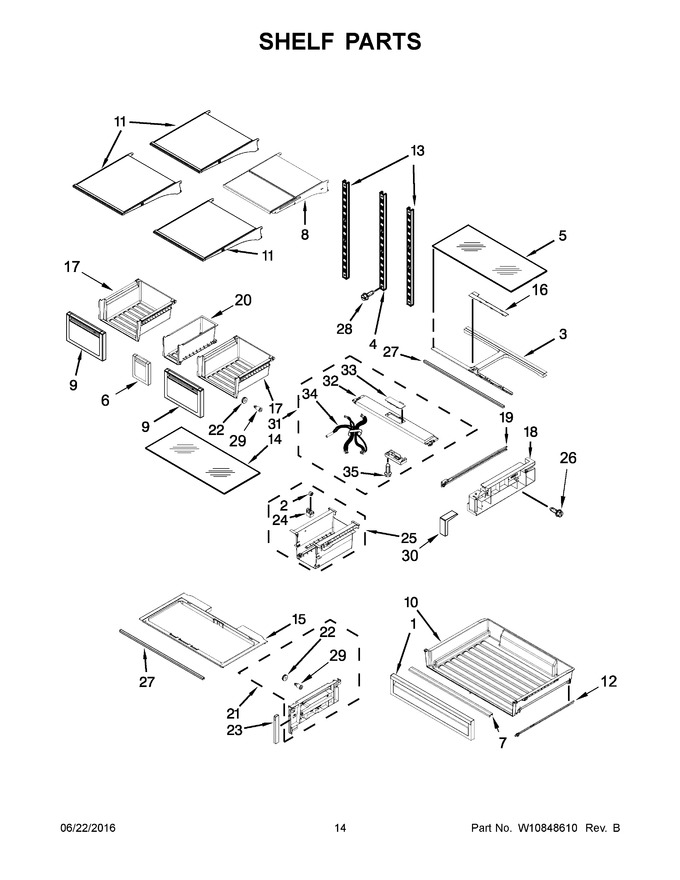

Diagram # Part Number Description Series Find a Video
1 WPW10510417 Front, Pantry Find a Video
2 W10248789 Roller, Center Find a Video
3 WPW10489978 Support, Pantry Find a Video
4 WPW10248516 Ladder, Center Find a Video
5 WPW10628815 Glass, Pantry Find a Video
6 W11218695 Crisper, Front   (Replaces:W10423520) Find a Video
7 W10398002 Handle, Pantry Find a Video
8 WPW10401836 Shelf, Tuck Find a Video
9 WPW10688114 Assembly, Crisper Front Find a Video
10 WPW10654844 Pan, Pantry   (Replaces:W10498901) Find a Video
11 WPW10402687 Shelf, Fixed Find a Video
12 W10508330 Runner, Roller (left Hand) Find a Video
13 WPW10372170 Ladder, Side Find a Video
14 WPW10628814 Glass, Crisper Find a Video
15 W10717569 Cover, Crisper Find a Video
16 W10490266 Support, Pantry Cover Find a Video
17 W10850377 Pan, Crisper   (Replaces:W10387757) Find a Video
18 WPW10498906 Sideplate, Pantry (left Hand) Find a Video
19 W10508327 Slide, Pantry (left Hand) Find a Video
20 WPW10387778 Pan, Crisper Find a Video
21 W11315531 Sideplate, Crisper (left Hand)   (Replaces:W10549601) Find a Video
22 W11763411 Roller, Guide   (Replaces:W10248544) Find a Video
23 WPW10248544 Plate, Crisper Front Find a Video
24 W10467415 Housing, Roller Find a Video
25 W10530314 Assembly, Center Crisper Support Find a Video
26 W10662015 Screw Find a Video
27 WP8281136 Support, Front Find a Video
28 WPW10236512 Screw Find a Video
29 W10423560 Axle, Roller Find a Video
30 WPW10257246 Plate, Pantry Front Find a Video
31 W10467416 Assembly, Pantry Front Cover (includes Led Assembly) Find a Video
32 W11044862 Cover, Top   (Replaces:W10398004) Find a Video
33 WPW10398004 Assembly, User Interface Find a Video
34 W10807389 Assembly, Pantry Wire (includes Thermistor)   (Replaces:W10442183) Find a Video
35 W10442183 Screw Find a Video
12A W11311945 Runner, Roller (right Hand)   (Replaces:W10508328) Find a Video
18A W10508328 Sideplate, Pantry (right Hand) Find a Video
19A WPW10498902 Slide, Pantry (right Hand) Find a Video
21A W10508326 Sideplate, Crisper (right Hand) Find a Video
W10549602 Find a Video

    View Diagram in Separate Window     Print Icon   Print Part List
  Move Mouse over Availability column to View Location Quantities-on-Hand

Diagram for WRF757SDEM01
