Diagram # Part Number Description Series Find a Video
1 WPW10325670 Panel, Drawer Front (white) Find a Video
2 WPW10318026 Bracket, Mounting Find a Video
3 WPW10441804 Slide, Drawer (left) Find a Video
4 W10813962 Drawer, Storage   (Replaces:W10688022) Find a Video
5 WP3196175 Screw   (Replaces:3196165) Find a Video
1A WPW10325671 Panel, Drawer Front (black) Find a Video
1B WPW10325673 Panel, Drawer Front (stainless) Find a Video
3A WPW10441805 Slide, Drawer (right) Find a Video

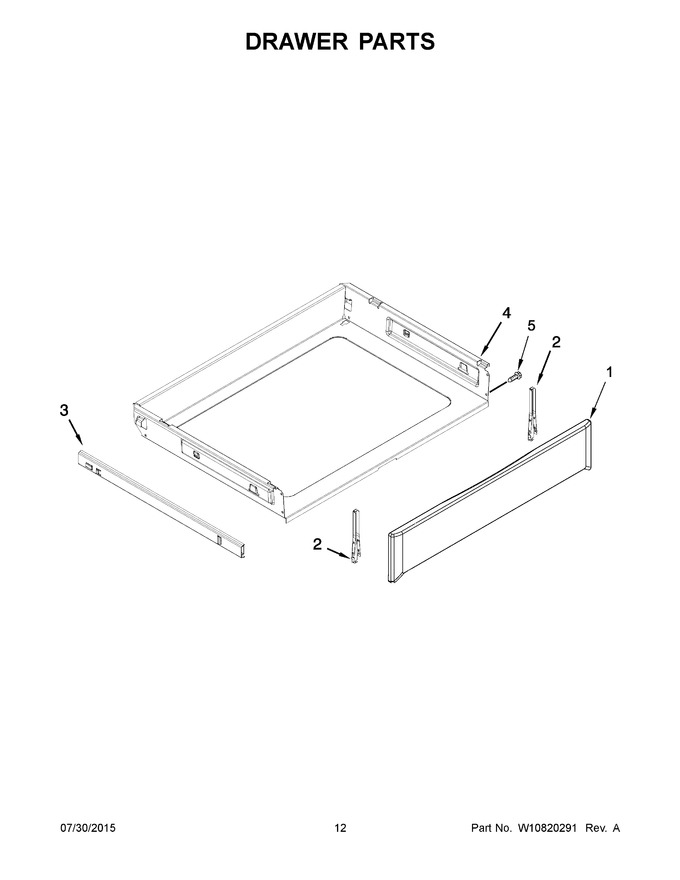

    View Diagram in Separate Window     Print Icon   Print Part List
  Move Mouse over Availability column to View Location Quantities-on-Hand

Diagram for MGR8600DH1
