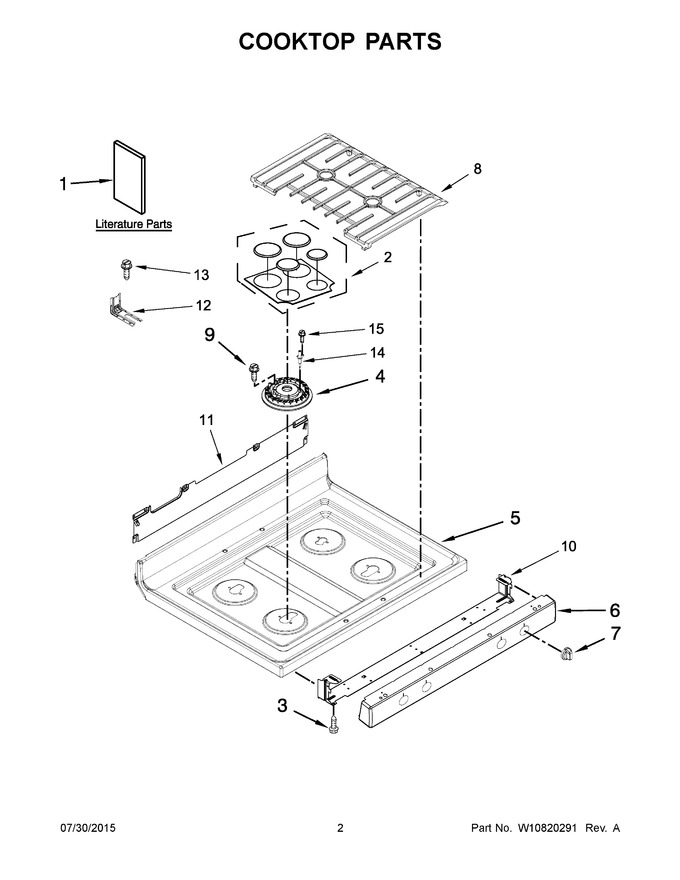

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10553363 | Instructions, Installation |  |
|||
| 1F | W10400066 | Guide, Quick Start (english) | |
|||
| 2 | WPW10183375 | Set, Burner Cap (black) | |
|||
| 3 | WPW10067840 | Screw | |
|||
| 4 | WPW10515455 | Assembly, Burner (17.5k) (left Front & Right Front) | |
|||
| 5 | W10457443 | Cooktop (white) (Replaces:W10366731) | |
|||
| 6 | W10655860 | Panel, Manifold (white) | |
|||
| 7 | WPW10650400 | Knob, Control (stainless) | |
|||
| 8 | W11381652 | Grate, Set (black) (Replaces:W10655132) | |
|||
| 9 | WP3368921 | Screw (Replaces:3400701) | |
|||
| 10 | W10534174 | Bracket, Manifold | |
|||
| 11 | W10530070 | Bracket, Rear Gas Cooktop | |
|||
| 12 | W11447673 | Bracket, Anti-tip (Replaces:W10306542) | |
|||
| 13 | 7101P485-60 | Screw, Anti-tip Kit | |
|||
| 14 | WPW10515459 | Electrode | |
|||
| 15 | WP8273062 | Screw | |
|||
| 1A | W10667178 | Guide, Use & Care | |
|||
| 1B | W10538793 | Tech Sheet (english) | |
|||
| 1C | W10538794 | Tech Sheet (french) | |
|||
| 1D | 9762761 | Tips, Safe Cooking (english) | |
|||
| 1E | W10065852 | Tips, Safe Cooking (french) | |
|||
| 1G | W10400067 | Guide, Quick Start (french) | |
|||
| 4A | WPW10515454 | Assembly, Burner (9.5k) (left Rear) | |
|||
| 4B | WPW10515453 | Assembly, Burner (6k) (right Rear) | |
|||
| 5A | W10457442 | Cooktop (black) (Replaces:W10366732) | |
|||
| 6A | W10655863 | Panel, Manifold (black) | |
|||
| 6B | W10655866 | Panel, Manifold (stainless) | |
|||
| NI | N/P | Following Parts Not Illustrated | |
|||
| W10519949 | Harness, Main Lcc | |
||||
| W10519920 | Harness, Dsi Ground | |
||||
| W10625552 | Harness, Cooktop | |
||||
| WPW10701462 | Harness, Bake/broil (Replaces:W10170250) | |
||||
| W11161843 | Harness, Bake/broil (Replaces:W10753750) | |
||||
| 3196896 | Clip, Wire | |
||||
| 3400964 | Clip, Wire (Replaces:3196520) | |
||||
| 16515 | Clip, Harness (Replaces:313438) | |
||||
| W10334923 | Clip, Wire | |
||||
| 3196696 | Clip, Harness | |
||||
| WPW10182767 | Tie, Cable | |
